TOFFLON - Freeze Dryer
or
Call +390514086204
Specifications
| Manufacturer | TOFFLON |
| Model | LYO-40 |
| Year | 2014 |
| Stock Number | MLTC-000035 |
| Machine Type | Freeze Dryer |
| Application | Pharmaceutical, nutraceutical |
| Effective shelf area | 39.96 m2 |
| Internal chamber material | Stainless steel 316L |
| Installed power | 195 kW |
| Weight | 40,000 kg |
Description

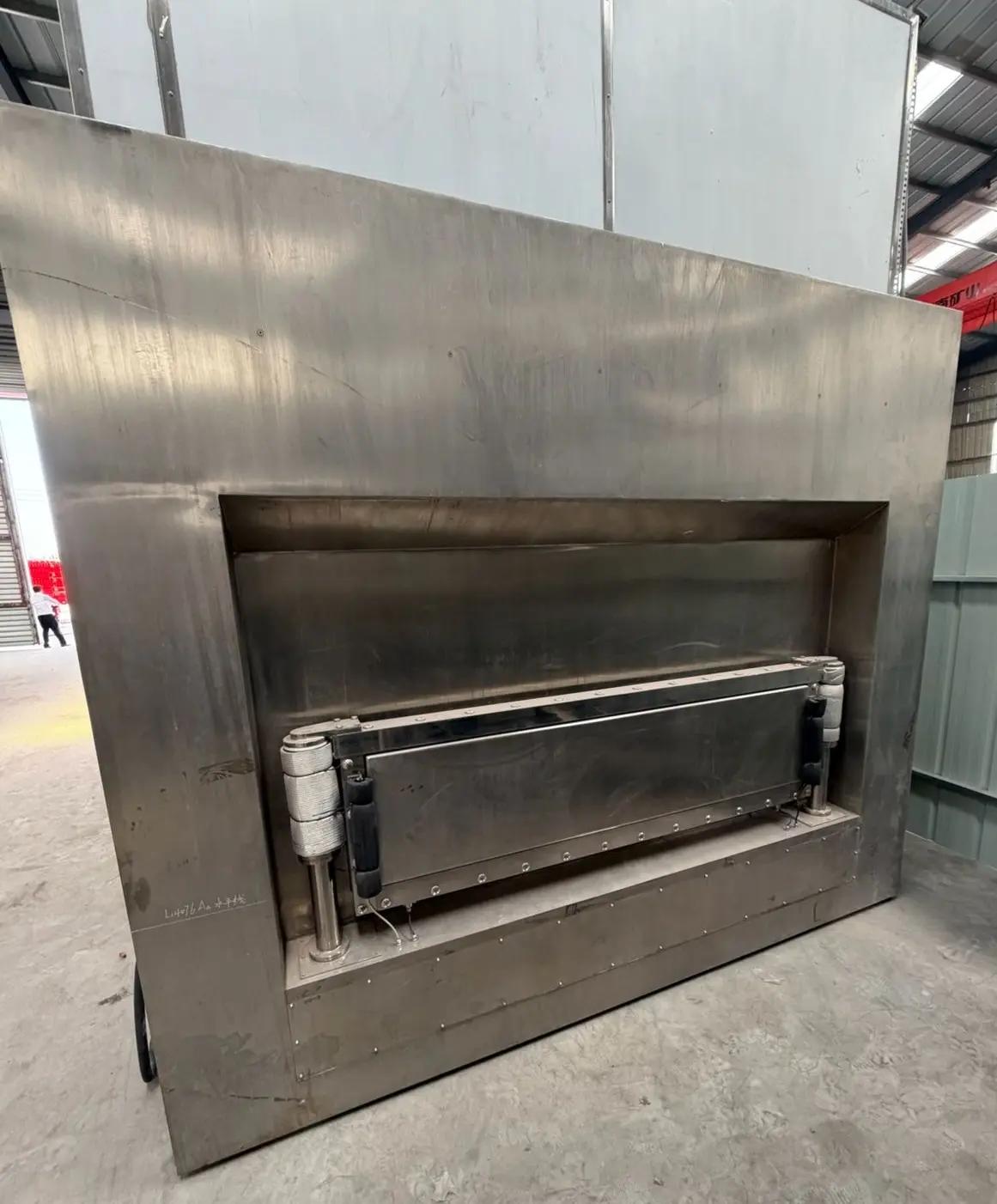

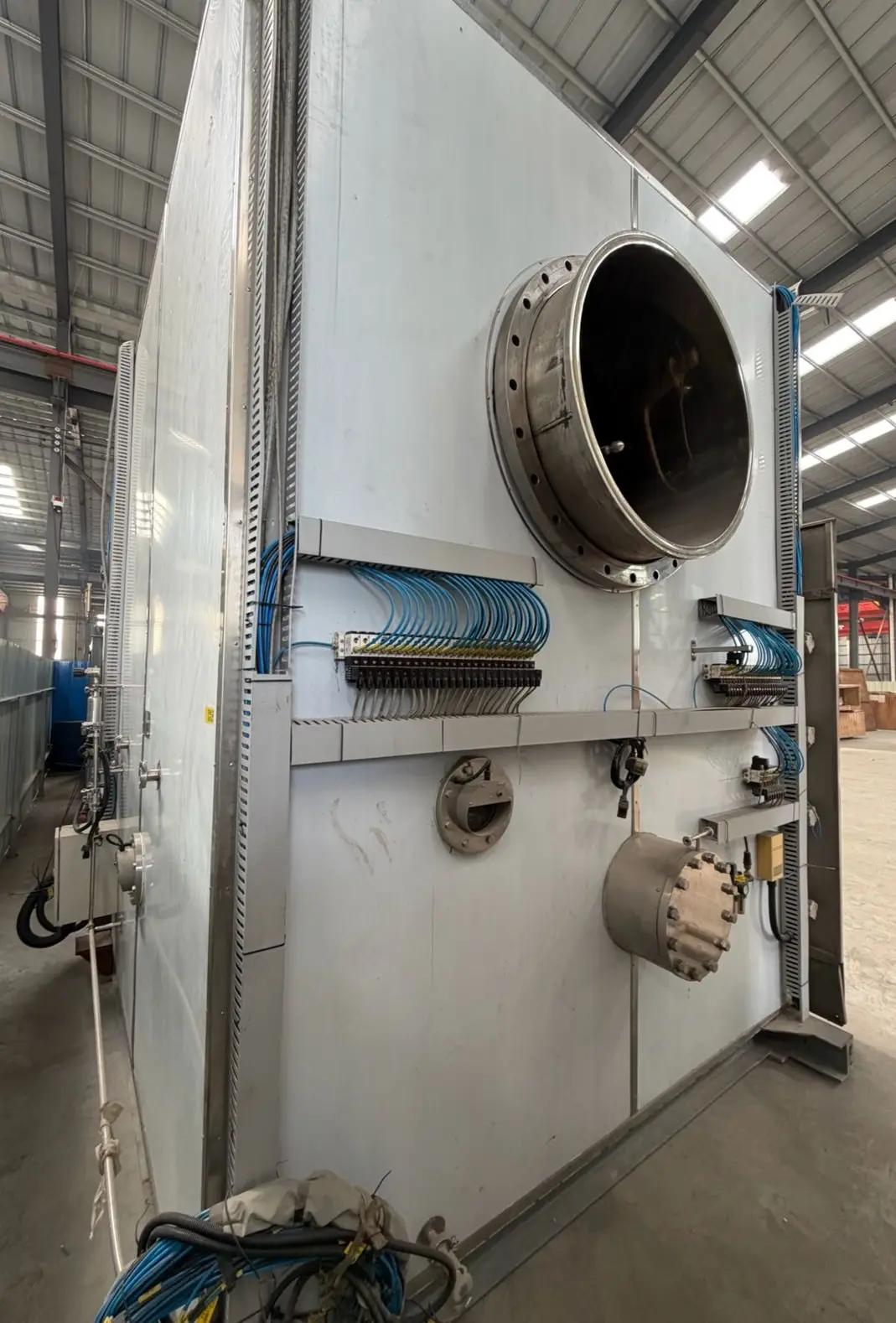

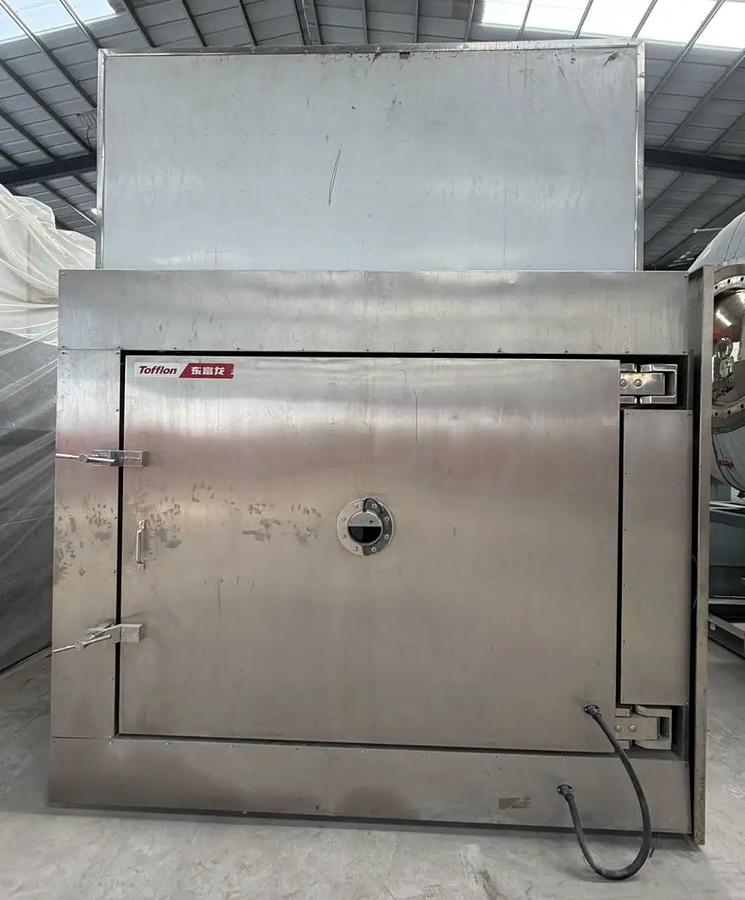

TOFFLON FREEZE DRYERS, MODEL LYO-40
Year of construction: 2014
Two freeze dryers of the same model (LYO-40). Installed, but never used in production.
For a wide range of applications, small or large scale industrial drying processes. Automatic vial loading and unloading system available on request, subject to verification of the complete system. Installation Qualification (IQ) documentation material available.
- GMP-Oriented Aseptic Design
- Uniform Shelf Temperature
- Reliable Condenser and Vacuum System
- Advanced Control and Data Integrity
MACHINE CHARACTERISTICS
- Effective shelf area: 39.96 m2
- Ice condenser capacity: 800 kg
- Documentation: Installation Qualification (IQ) material
- Cleaning / sterilization: CIP / SIP
CHAMBER CHARACTERISTICS
- Chamber dimensions (D x W x H): 2,150 x 2,350 x 2,950 mm
- Internal chamber material: Stainless steel 316L
- External cladding: Stainless steel 304
ENERGY CONSUMPTION
- Installed power: 195 kW
- Electrical supply: 380 V / 50 Hz
DIMENSIONS
- Overall dimensions (L x W x H): 9,500 x 3,000 x 6,500 mm
- Weight: 40,000 kg
