CAM - Blister Packaging Machines

Specifications

ManufacturerCAM
ModelM92F
Year2006
Stock NumberMLTC-000031
Machine TypeBlister Packaging Machine
ApplicationFarmaceutica, nutraceutica
Outputup to 2400 units/h
Year of construction2006
Air consumption500 NL/min (minimum)
Cooling water required0,7 m3/hr (approx)

Description

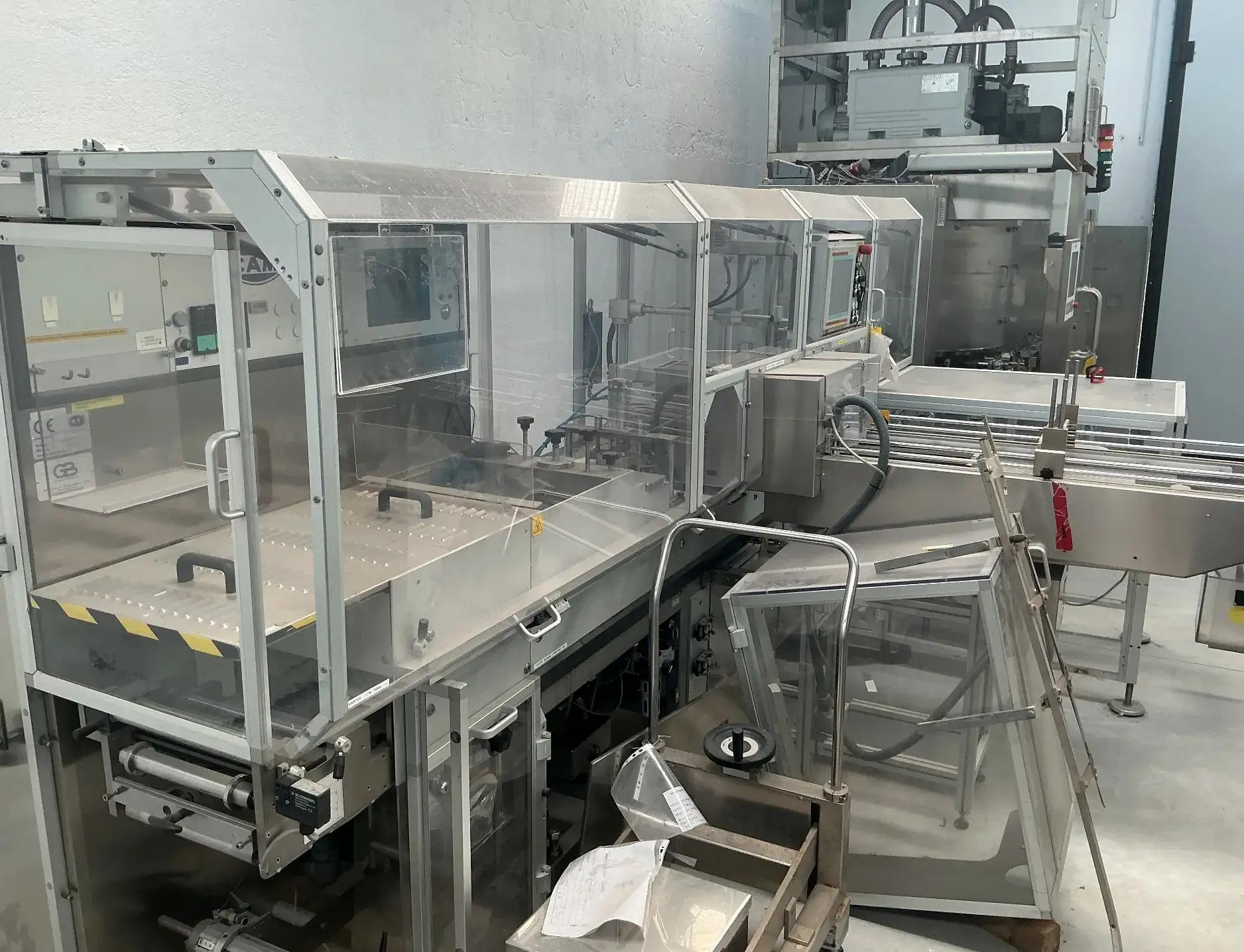

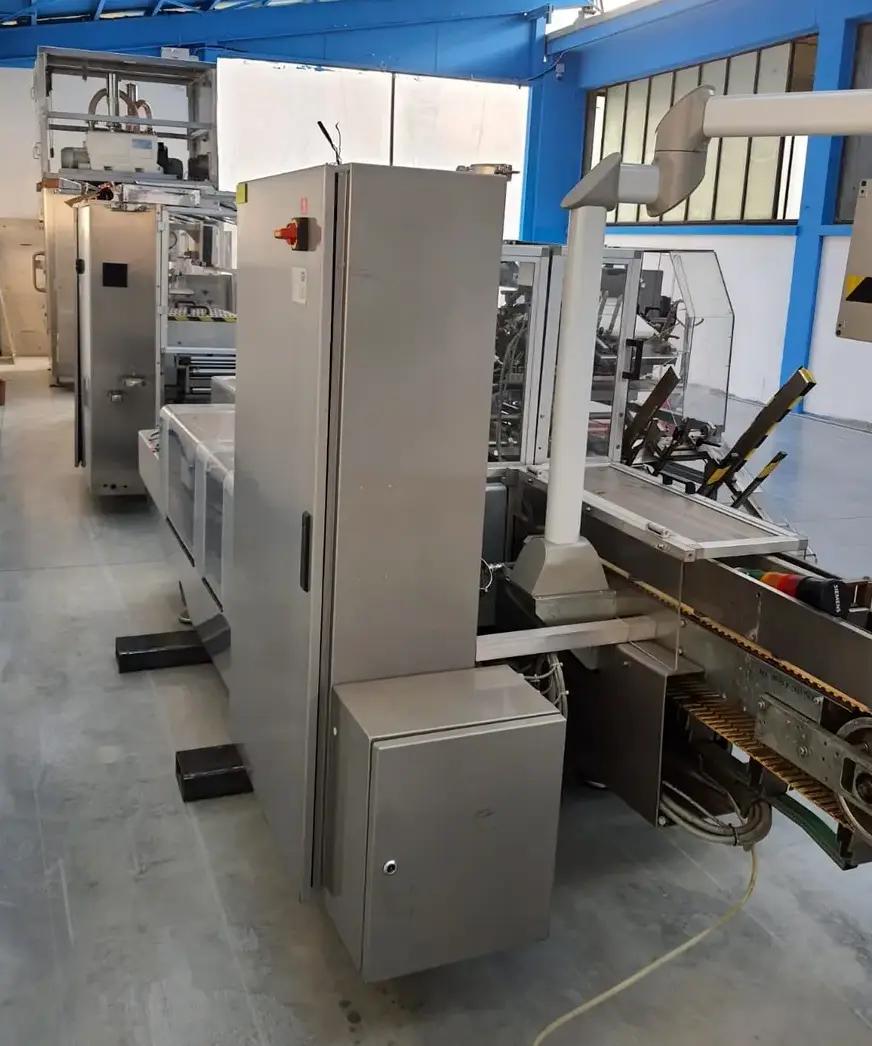

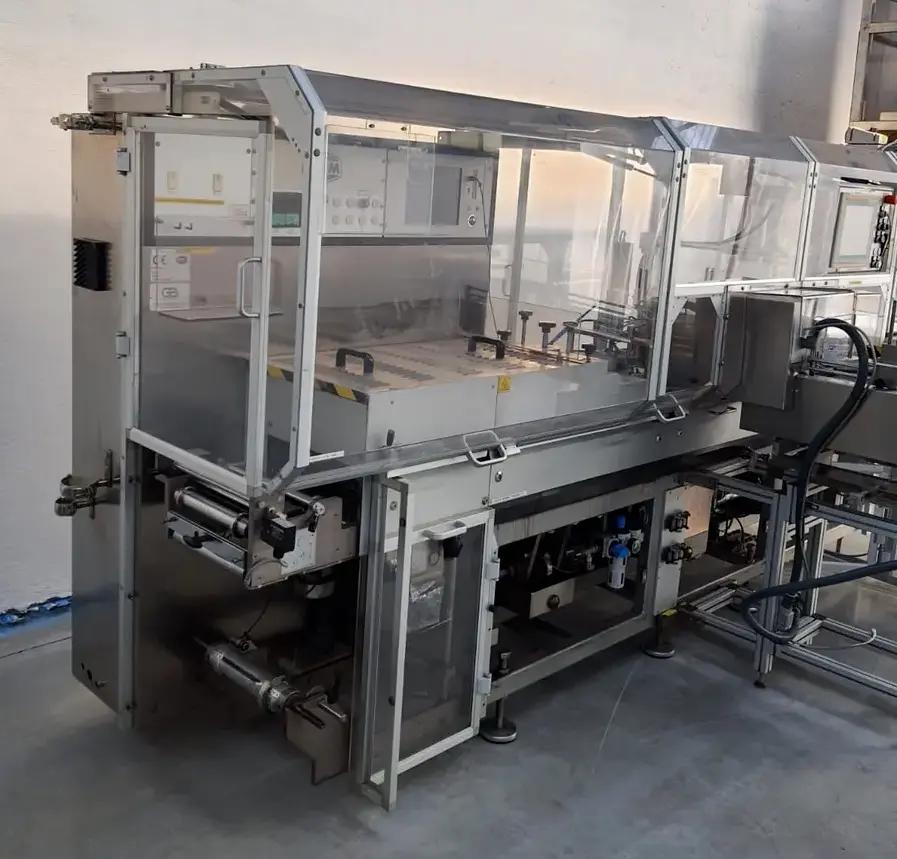

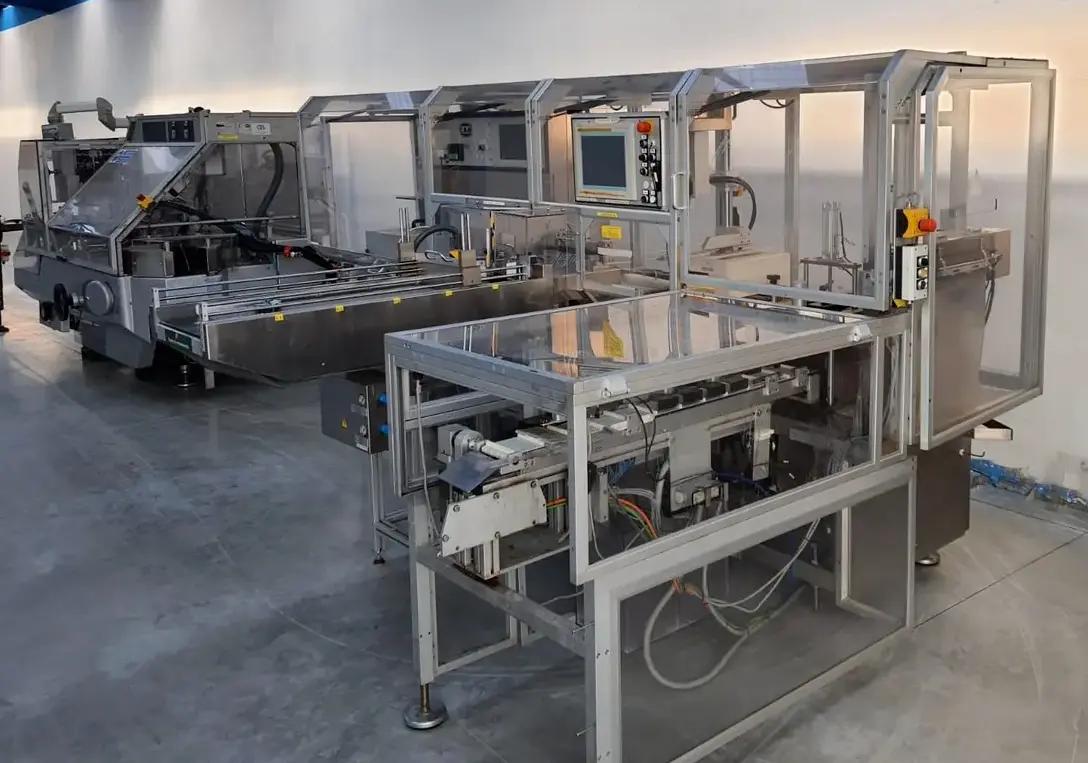

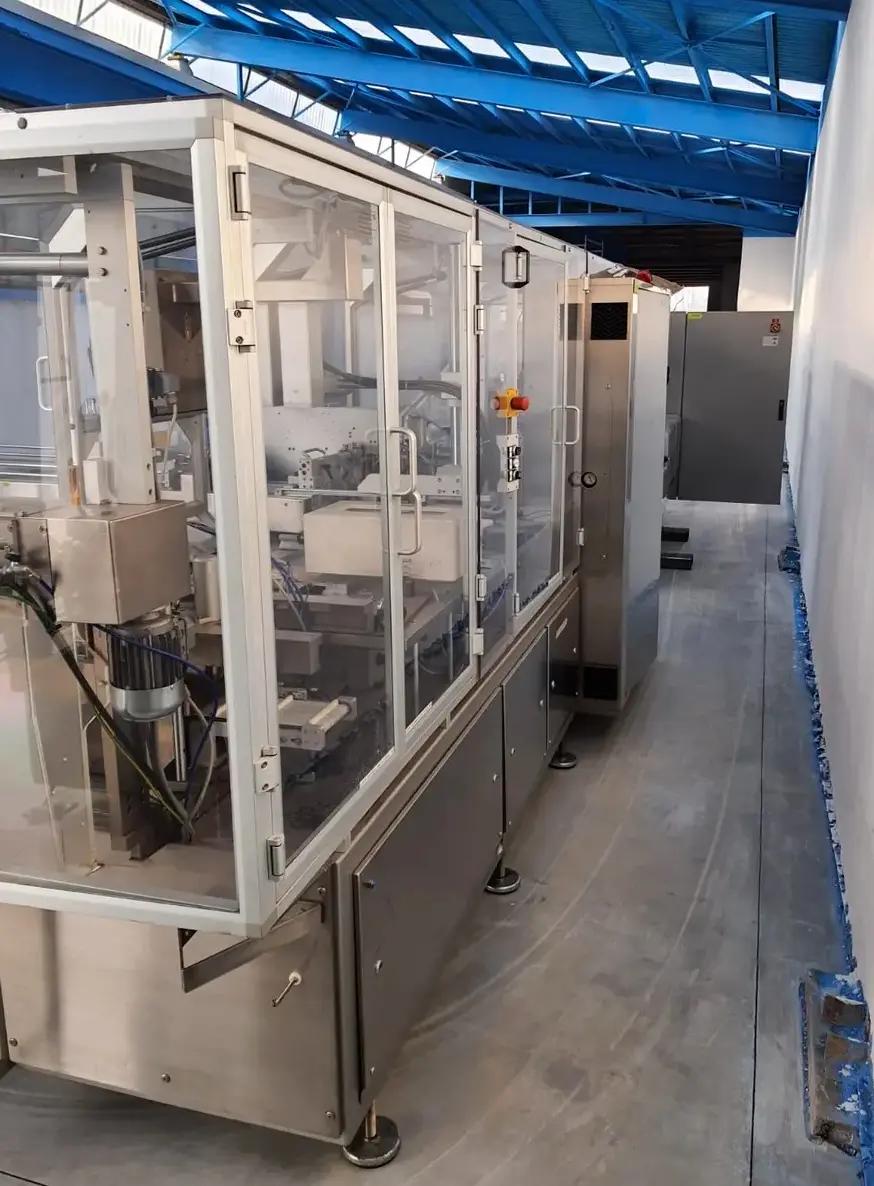

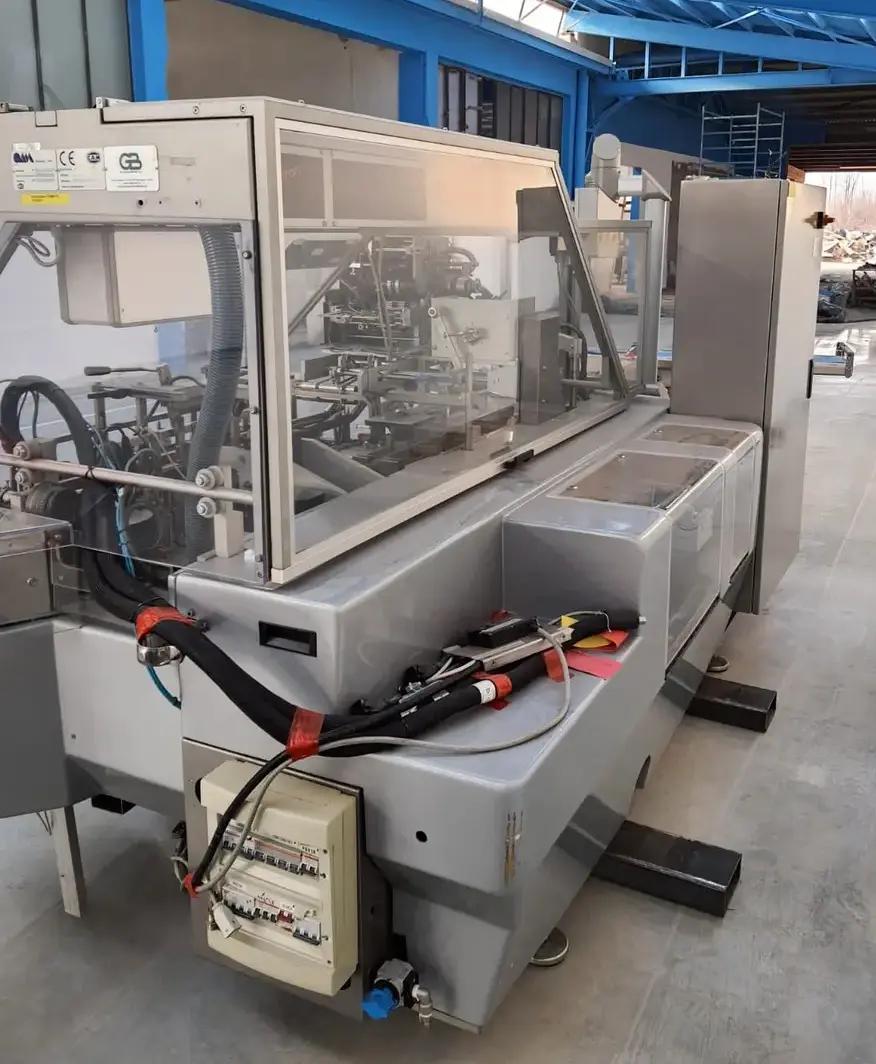

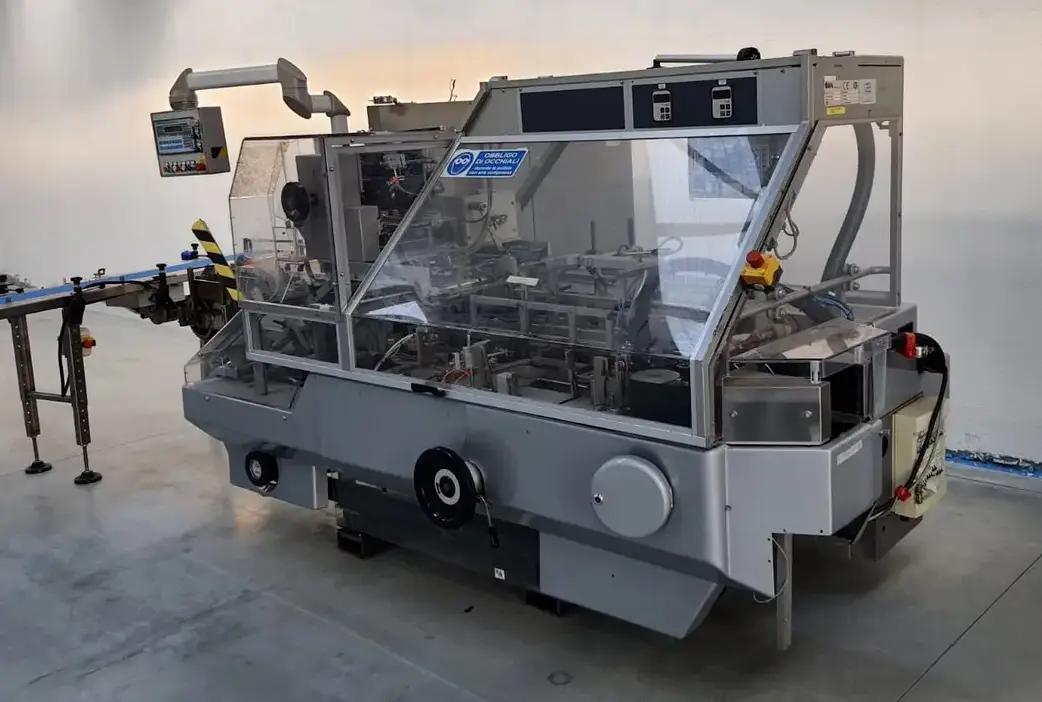

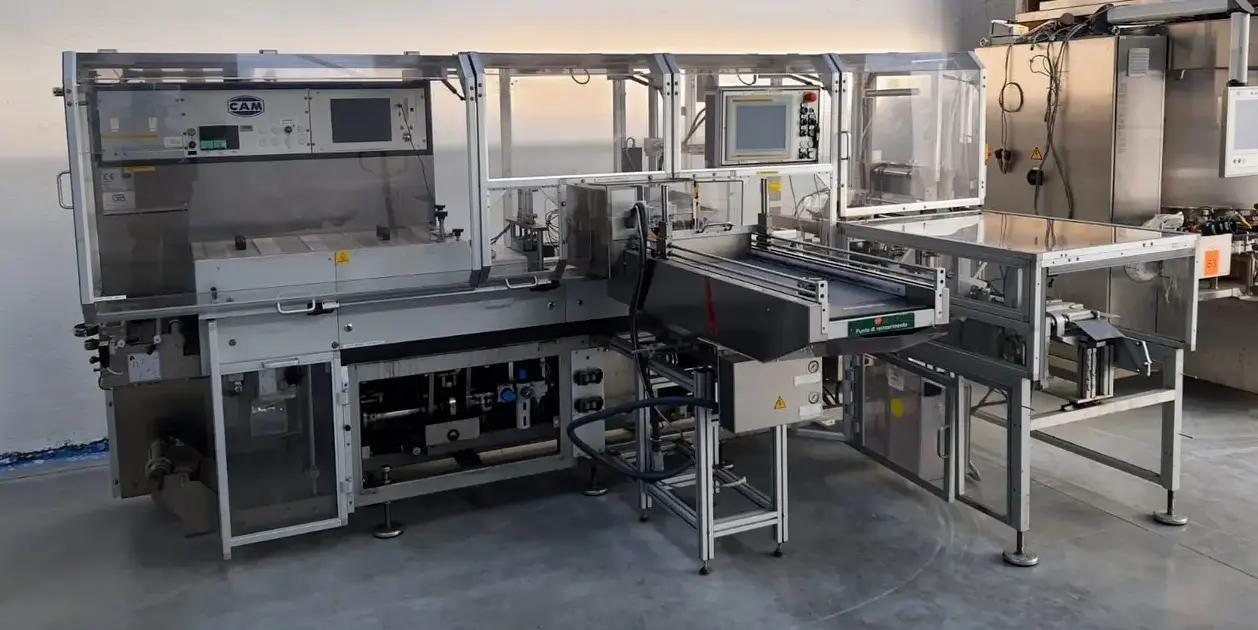

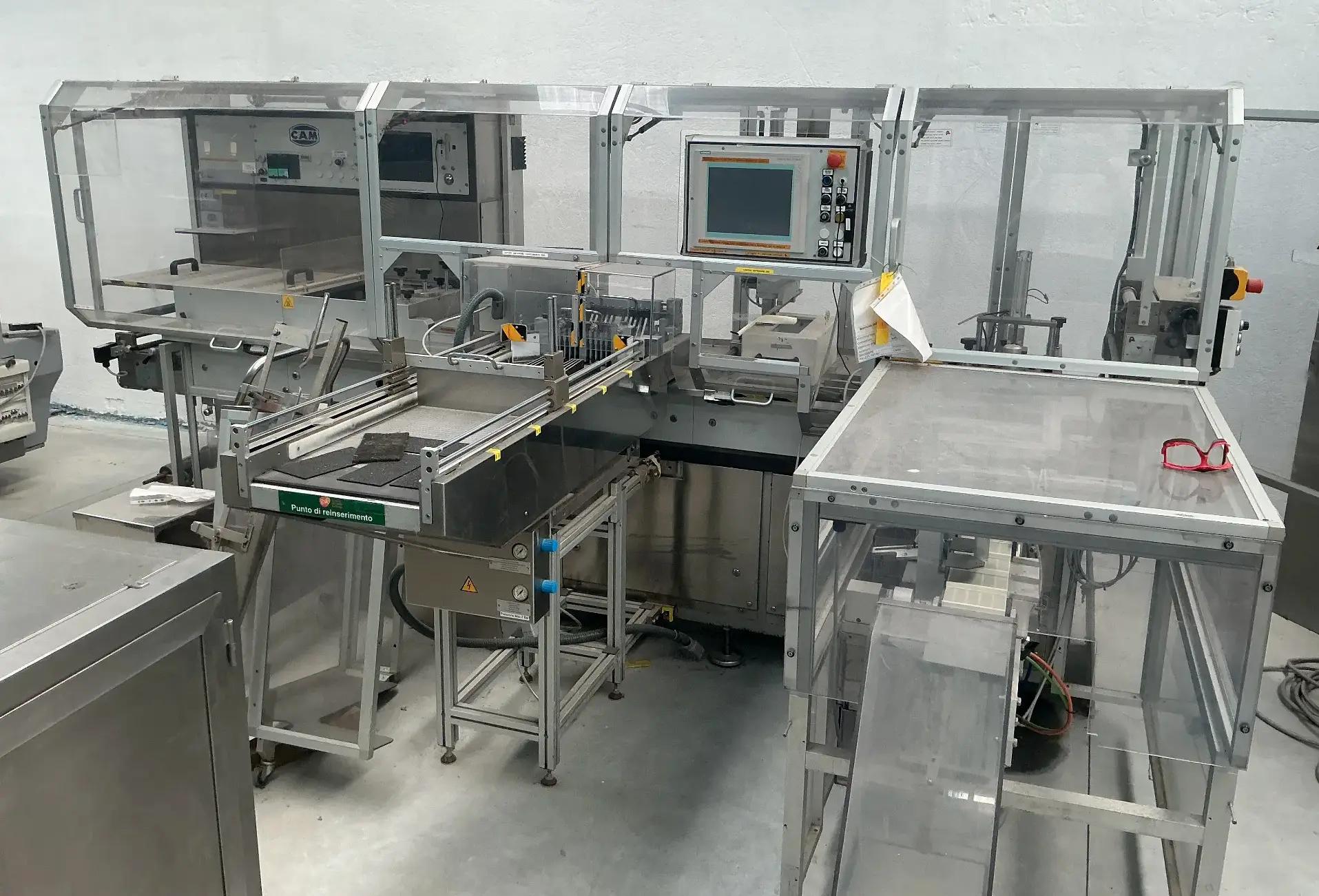

CAM BLISTER PACKAGING MACHINE, MODEL M92F

Year of construction: 2006


Intermittently operating thermoforming blister packer, designed for the production of deep-drawn and sealed blister strips. Fitted with an automatic product infeed assembly where product is extracted from magazines and then aligned and placed into the pockets.



PRODUCTION CHARACTERISTICS


  • Output: up to 2400 units/h
  • Speed: 40 strokes/min (max; with variable speed)
  • Operation: left to right


  • Forward draw: 204 mm
  • Draw depth: 28 mm (max)
  • Foil width: 256 mm



ENERGY CONSUMPTION


  • Electricity usage: 13kW
  • Compressed air: 6,0 - 8,0 bar
  • Air consumption: 500 NL/min (minimum)
  • Cooling water required: 0,7 m3/hr (approx)
