PESTER - Overwrapping Machine

Specifications

ManufacturerPESTER
ModelPEWO-FOLD 2 COMPACT
Year2016
Stock NumberMLTC-000027
Machine TypeOverwrapping Machine
ApplicationPharmaceutical, nutraceutical
Output22 containers/min. (max)
Power consumption5,5 kW
Operating pressure4 bar
Year of construction2016

Description

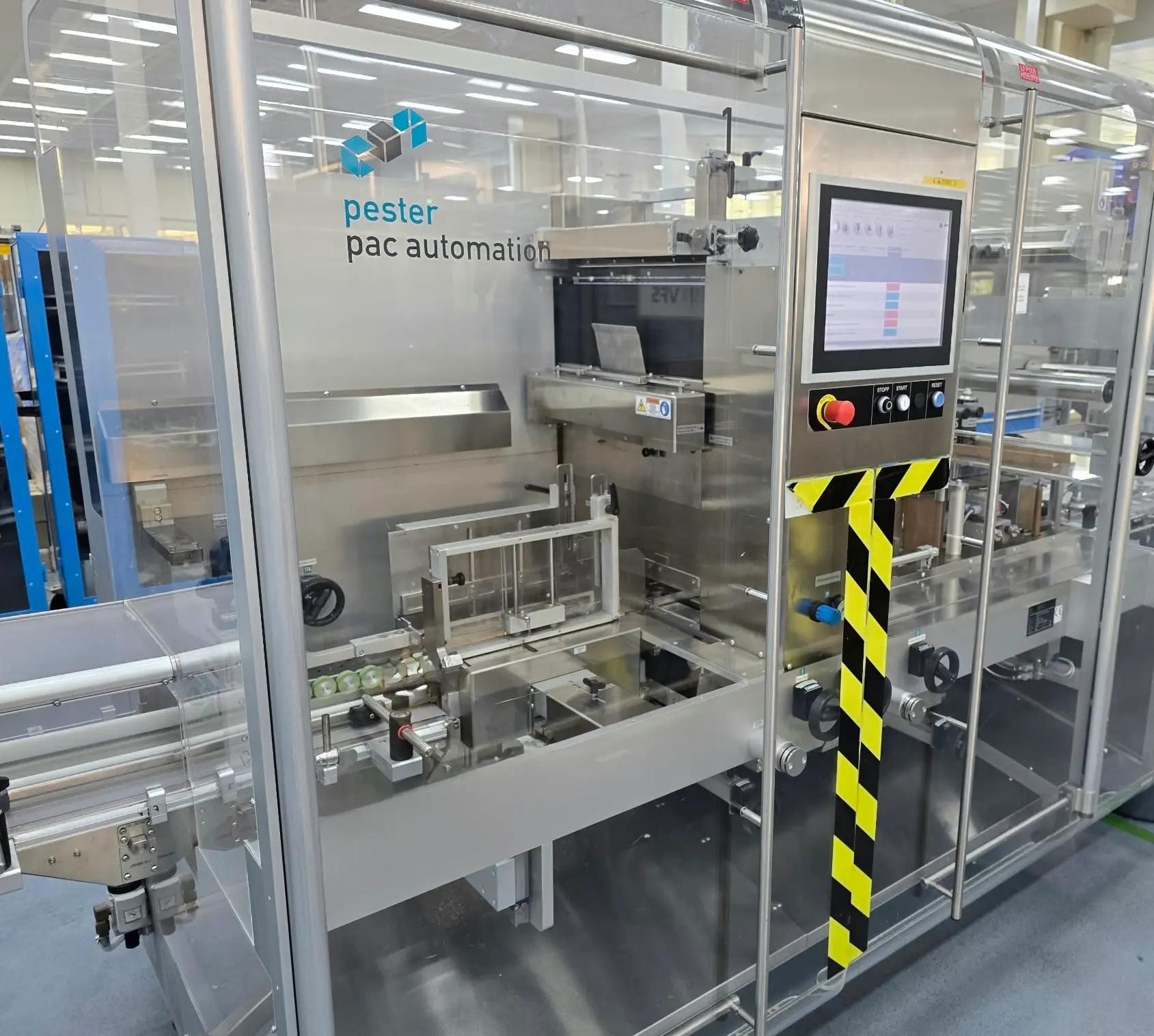

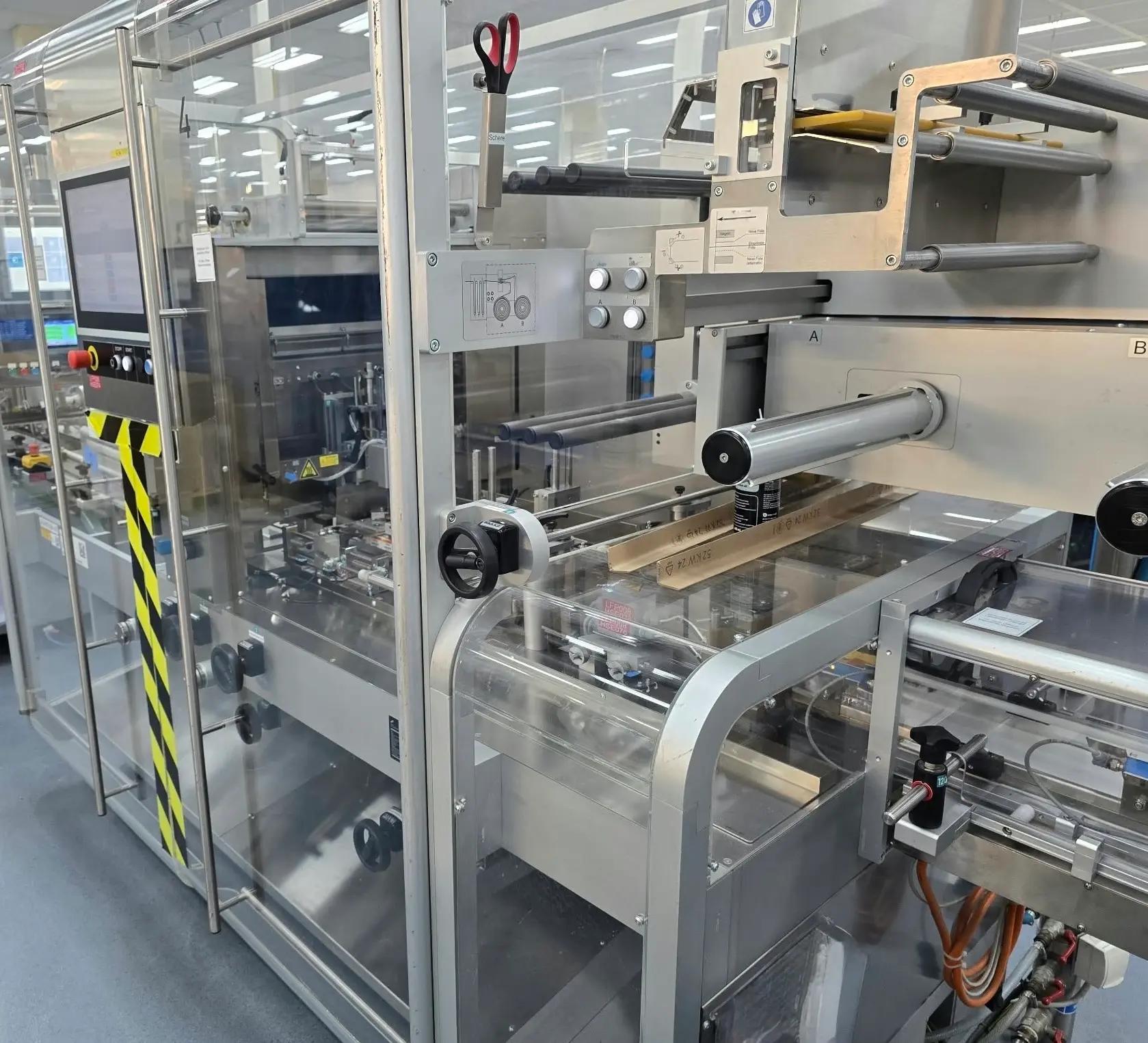

PESTER OVERWRAPPER, MODEL PEWO-FOLD 2 COMPACT

Year of construction: 2016


Overwrapping machine, for single and multiple containers.



MACHINE CHARACTERISTICS


  • device for 90° rotation of folding cartons
  • straight infeed running from left to right
  • for PP films
  • stacking station
  • automatic film change from working roll to storage roll using film splicer
  • Schneider Electronics PacDrive LMC control system



PRODUCTION CHARACTERISTICS


  • Output: 22 containers/min. (max)


  • Infeed width: 100-200 mm
  • Infeed length: 50-350 mm
  • Infeed height: 30-150 mm


  • Container dimensions: 110-160-185 x 130-220 x 78-55 mm
  • Groupings: 1 x 5 x 1 and 1 x 4 x 3



ENERGY CONSUMPTION


  • Power consumption: 5,5 kW
  • Current consumption: 7,9 A
  • Fuse protection: 16 A
  • Operating pressure: 4 bar
