Wangen - TWN 104 - Hygienic Twin-Screw Pump
Specifications

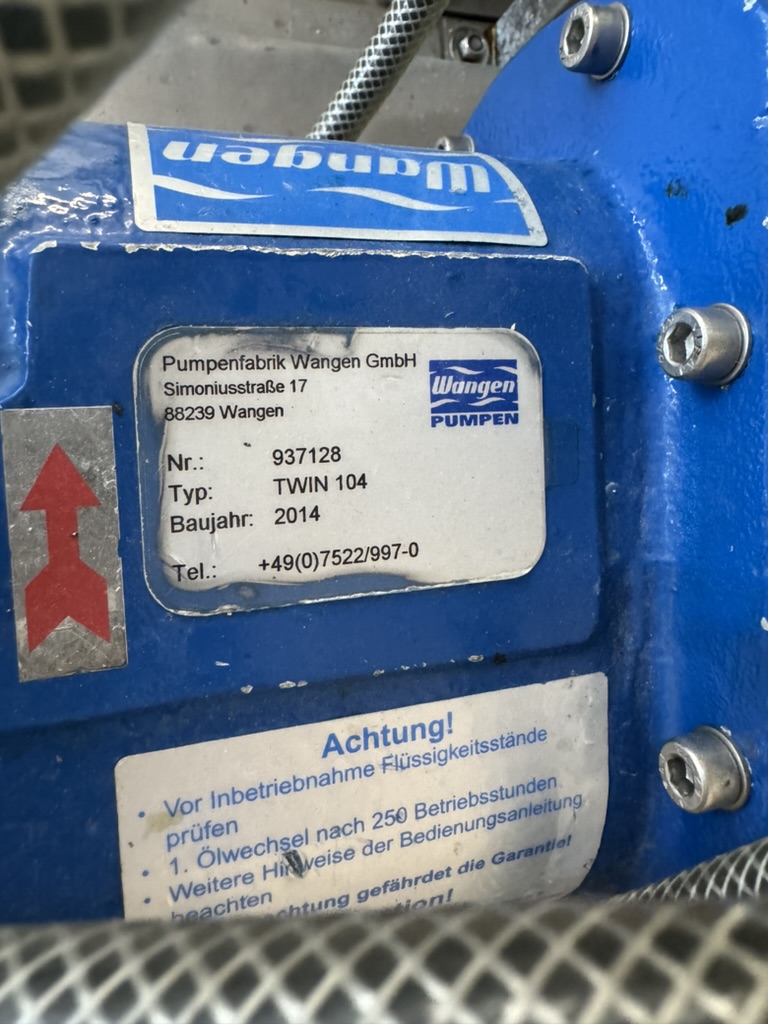

| Manufacturer | WANGEN |
| Model | TWIN 104 |
| Year | 2014 |
| Stock Number | MLTC-000025 |
| Machine Type | Hygienic Twin-Screw Pump - Twin-Screw Pump |
| Application | Hygienic and low-pulsation transfer of liquid, viscous, shear-sensitive and particle-containing products in pharmaceutical, nutraceutical, cosmetic, food, beverage and chemical production. |
| Typical Products | Pharmaceutical and nutraceutical liquids Creams, ointments and gels Cosmetic products Shampoo and liquid soap Syrups and concentrates Oils and fats Dairy products Sauces and fruit preparations Chocolate and confectionery products Chemical suspensions Adhesives Products containing soft particles |
Description
WANGEN PUMPS, MODEL TWIN 104
Year of production: 2014
Short Description
Used Wangen TWN 104 hygienic twin-screw pump manufactured in 2014. Mobile unit with variable-speed electric drive, suitable for high-capacity transfer of liquid, viscous and sensitive products.
Full Description
The Wangen TWN 104 is a hygienic twin-screw positive-displacement pump designed for reliable, low-pulsation and gentle transfer of products ranging from low to very high viscosity.
Its contact-free twin-screw pumping principle reduces shear forces and helps protect the consistency, structure and appearance of sensitive products. The pump offers high suction performance and reversible operation, making it suitable for tank emptying, loading, unloading, recirculation and product recovery.
The wide operating-speed range allows the pump to handle both process products and cleaning liquids. Subject to the installed seals and configuration, the unit may therefore be used for product transfer as well as CIP circulation.

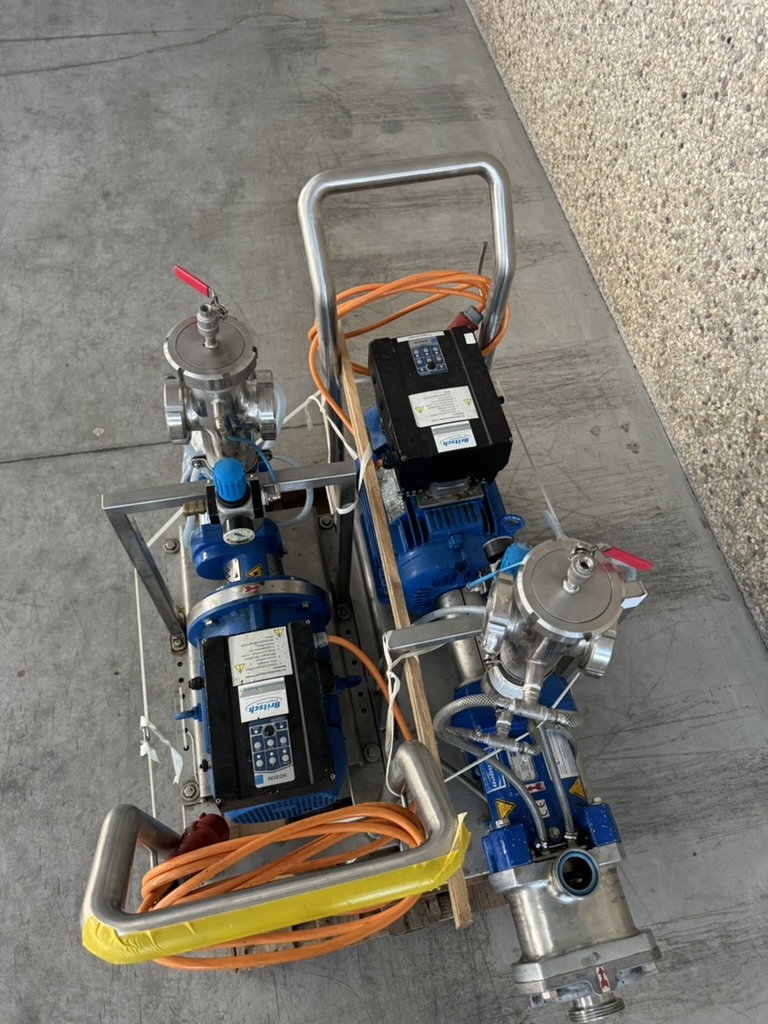

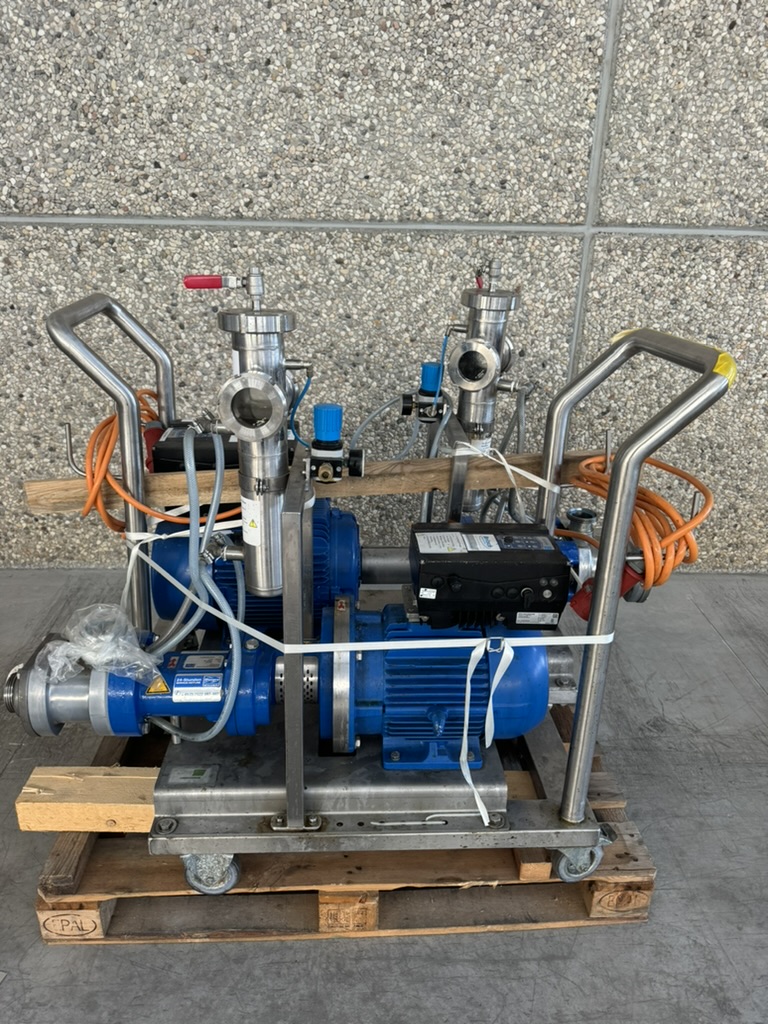

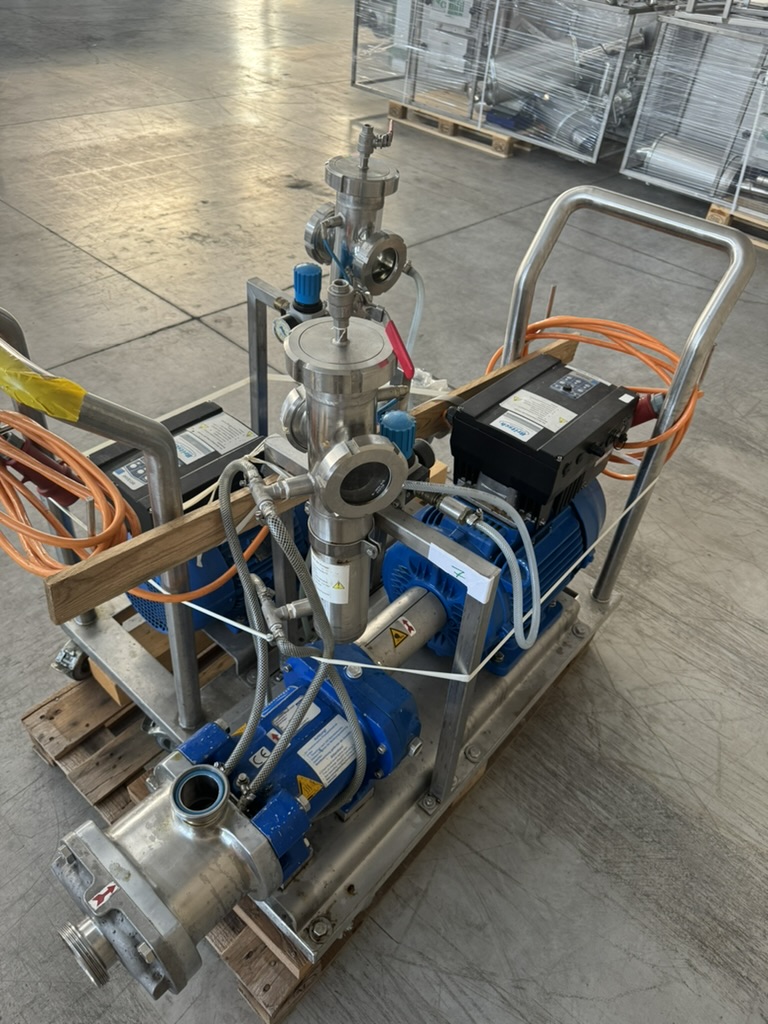

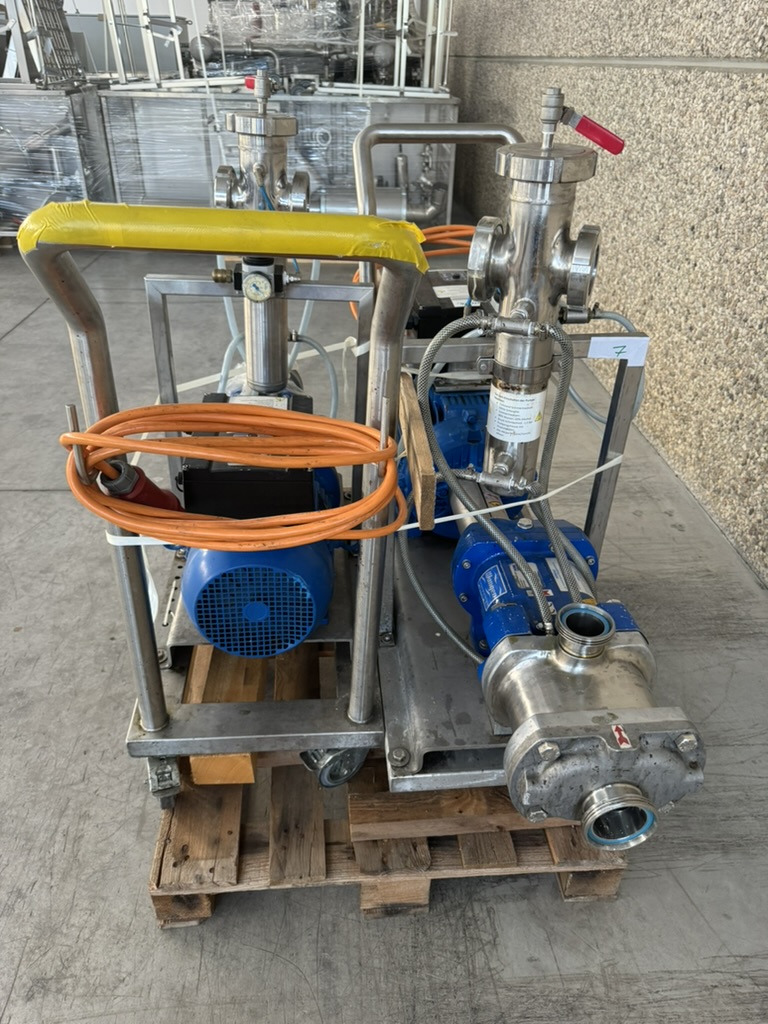

The pump is mounted on a mobile support frame and equipped with an electric motor, local variable-speed inverter and stainless-steel sanitary process components, as shown in the photographs.
A smaller Wangen TWN 70 pump is also available and may be purchased separately or together with this unit.
Main Features
- Hygienic twin-screw positive-displacement design
- High-capacity product transfer
- Gentle, low-shear handling
- Low-pulsation operation
- Suitable for low- and high-viscosity products
- High suction performance
- Reversible pumping direction
- Suitable for products containing particles
- Suitable for process transfer and CIP applications
- Variable-speed electric drive
- Mobile configuration
- Stainless-steel product-contact components
- Compact and flexible installation
Published Technical Data for the Model Range
Maximum flow rate: Up to approximately 60 m³/h at 3,600 rpm
Maximum differential pressure: Up to 16 bar
Maximum product temperature: Up to 130°C
Maximum viscosity: Up to 1,000,000 mPa·s / cP
Maximum particle size: Approximately 25 mm
Product-contact material: Stainless steel AISI 316L
Product-contact surface finish: Approximately Ra < 0.8 µm
Pumping direction: Reversible
Cleaning: Suitable for CIP and SIP applications, depending on configuration
Drive: Electric motor with variable-frequency drive
Installation: Mobile support frame
Process connections: Hygienic connections – exact type and diameter to be confirmed
Motor power: To be confirmed
Electrical supply: To be confirmed
Seal configuration: To be confirmed
Equipment Included
- Wangen TWN 104 pump
- Electric motor

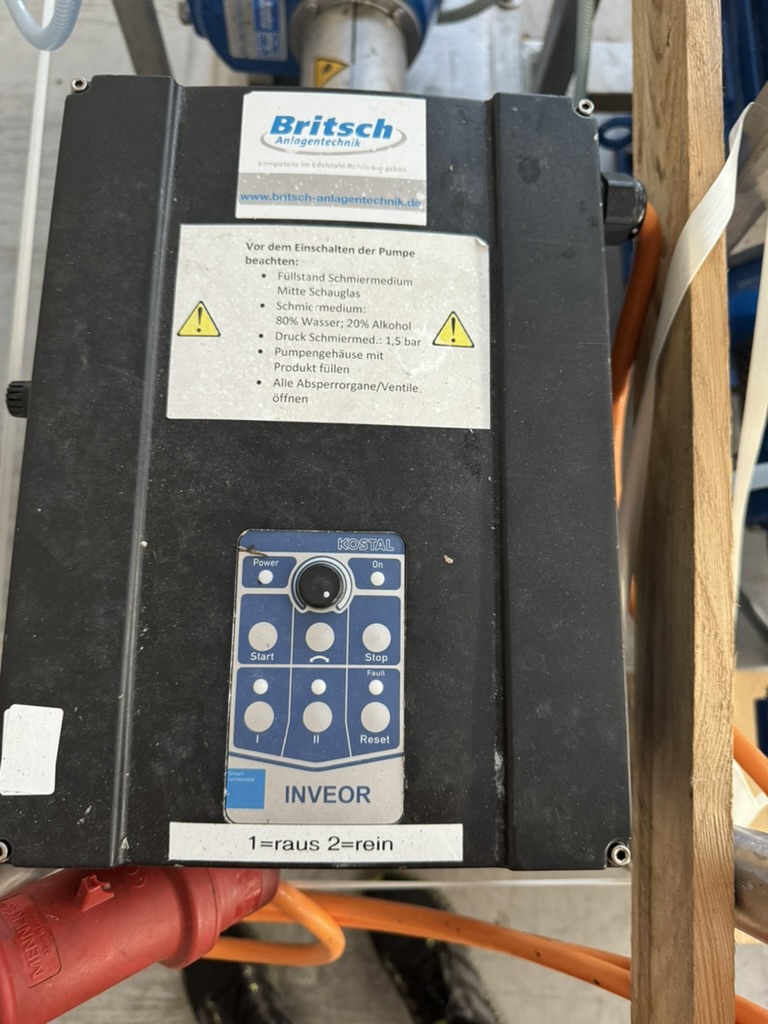

- Variable-speed inverter and local control
- Mobile support frame
- Stainless-steel sanitary process fittings and valve assembly
- Electrical power cable and accessories visible in the photographs
Final supply scope to be confirmed before sale.
