Wangen - TWN 70 - Hygienic Twin-Screw Pump
Specifications
| Manufacturer | WANGEN |
| Model | TWIN 70 |
| Year | 2014 |
| Stock Number | MLTC-000024 |
| Machine Type | Hygienic Twin-Screw Pump - Twin-Screw Pump |
| Application | Hygienic and low-pulsation transfer of liquid, viscous, shear-sensitive and particle-containing products in pharmaceutical, nutraceutical, cosmetic, food, beverage and chemical production. |
| Typical Products | Pharmaceutical and nutraceutical liquids Creams, ointments and gels Cosmetic products Shampoo and liquid soap Syrups and concentrates Oils and fats Dairy products Sauces and fruit preparations Chocolate and confectionery products Chemical suspensions Adhesives Products containing soft particles |
Description

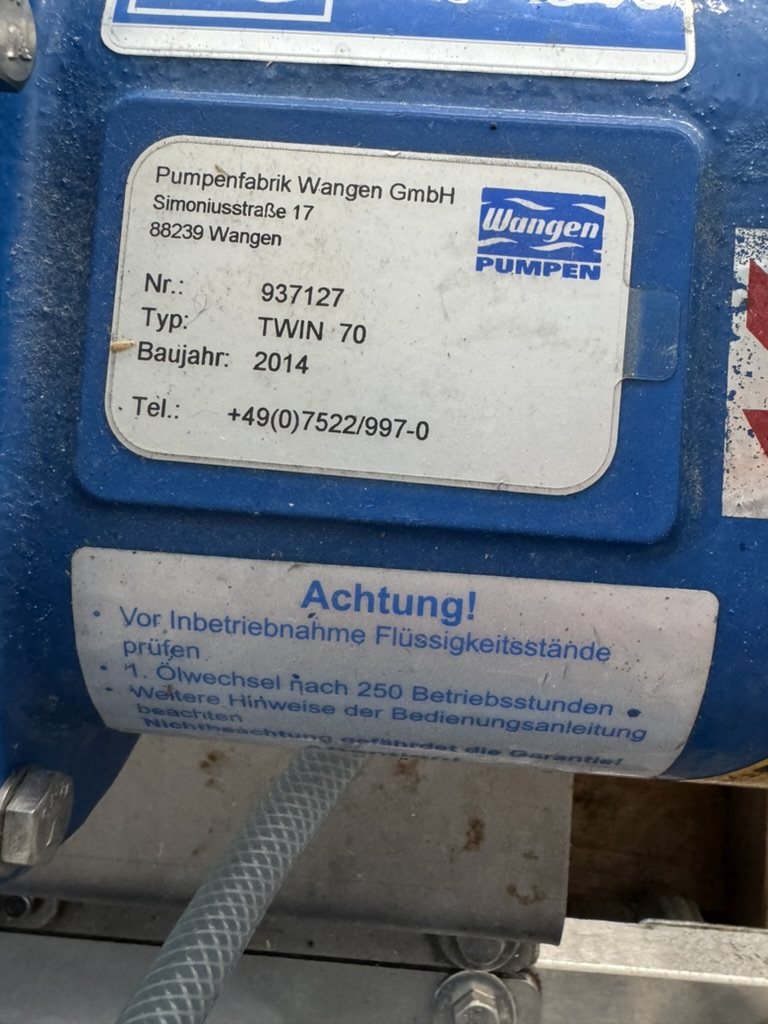

WANGEN PUMPS, MODEL TW IN 70
Year of production: 2014
Description
Used Wangen TWN 70 hygienic twin-screw pump manufactured in 2014. Mobile unit equipped with an electric motor and variable-speed drive, suitable for the gentle transfer of liquid, viscous and shear-sensitive products.
Full Description
The Wangen TWN 70 is a hygienic twin-screw positive-displacement pump designed for the reliable and gentle transfer of products ranging from low to very high viscosity.
Its twin-screw operating principle provides low-pulsation and low-shear product handling, helping to preserve the structure, consistency and quality of sensitive products. The pump can operate in both directions and offers strong suction performance, making it suitable for tank emptying, product transfer, loading and unloading applications.
The wide operating-speed range allows the same pump to be used for both product transfer and CIP circulation, subject to the installed drive, seals and specific configuration.
The unit is mounted on a mobile support frame and is equipped with an electric motor, local variable-speed inverter and stainless-steel sanitary process components, as shown in the photographs.
A Wangen TWN 104 pump is also available and may be purchased separately or together with this unit.
Main Features
- Hygienic twin-screw positive-displacement design
- Gentle, low-shear product handling
- Low-pulsation operation
- Suitable for low- and high-viscosity products
- High suction capability
- Reversible pumping direction
- Suitable for products containing particles
- Suitable for product transfer and CIP applications
- Variable-speed electric drive
- Mobile configuration
- Stainless-steel product-contact components
- Compact and easily movable unit
Published Technical Data for the Model Range
Maximum flow rate: Up to approximately 25 m³/h at 4,000 rpm
Maximum differential pressure: Up to 16 bar
Maximum product temperature: Up to 130°C
Maximum viscosity: Up to 1,000,000 mPa·s / cP
Maximum particle size: Approximately 20 mm
Product-contact material: Stainless steel AISI 316L
Product-contact surface finish: Approximately Ra < 0.8 µm
Pumping direction: Reversible
Cleaning: Suitable for CIP and SIP applications, depending on configuration
Drive: Electric motor with variable-frequency drive
Installation: Mobile support frame
Process connections: Hygienic connections – exact type and diameter to be confirmed
Motor power: To be confirmed
Electrical supply: To be confirmed
Seal configuration: To be confirmed
Equipment Included
- Wangen TWN 70 pump
- Electric motor

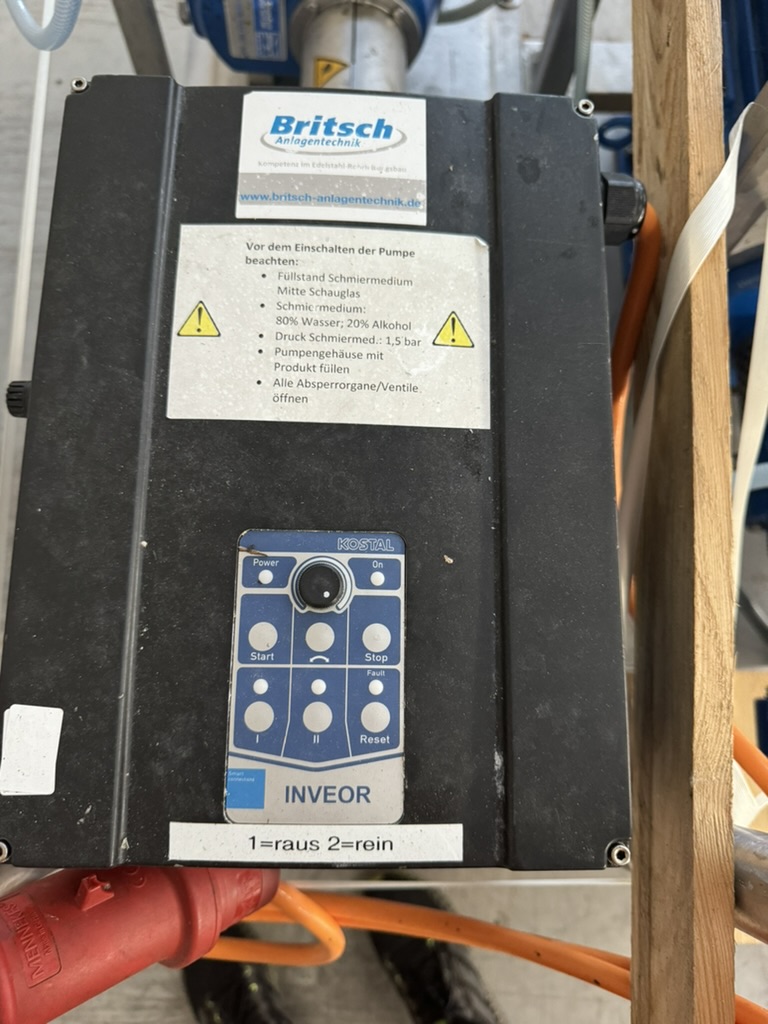

- Variable-speed inverter and local control
- Mobile support frame
- Stainless-steel sanitary process fittings and valve assembly
- Electrical power cable and accessories visible in the photographs
Final supply scope to be confirmed before sale.
