IMA - Labelling Machine

or
Call +390514086204

Specifications

ManufacturerIMA
ModelSENSITIVE 350
Year2010
Stock NumberMLTC-000026
Machine TypeLabelling Machine
ApplicationPharmaceutical, nutraceutical
Maximum output (pieces/minute)350
Label length (mm)15-250
Bottle diameter (mm)16-78
Container Typ Vials. Bottles, Jars

Description

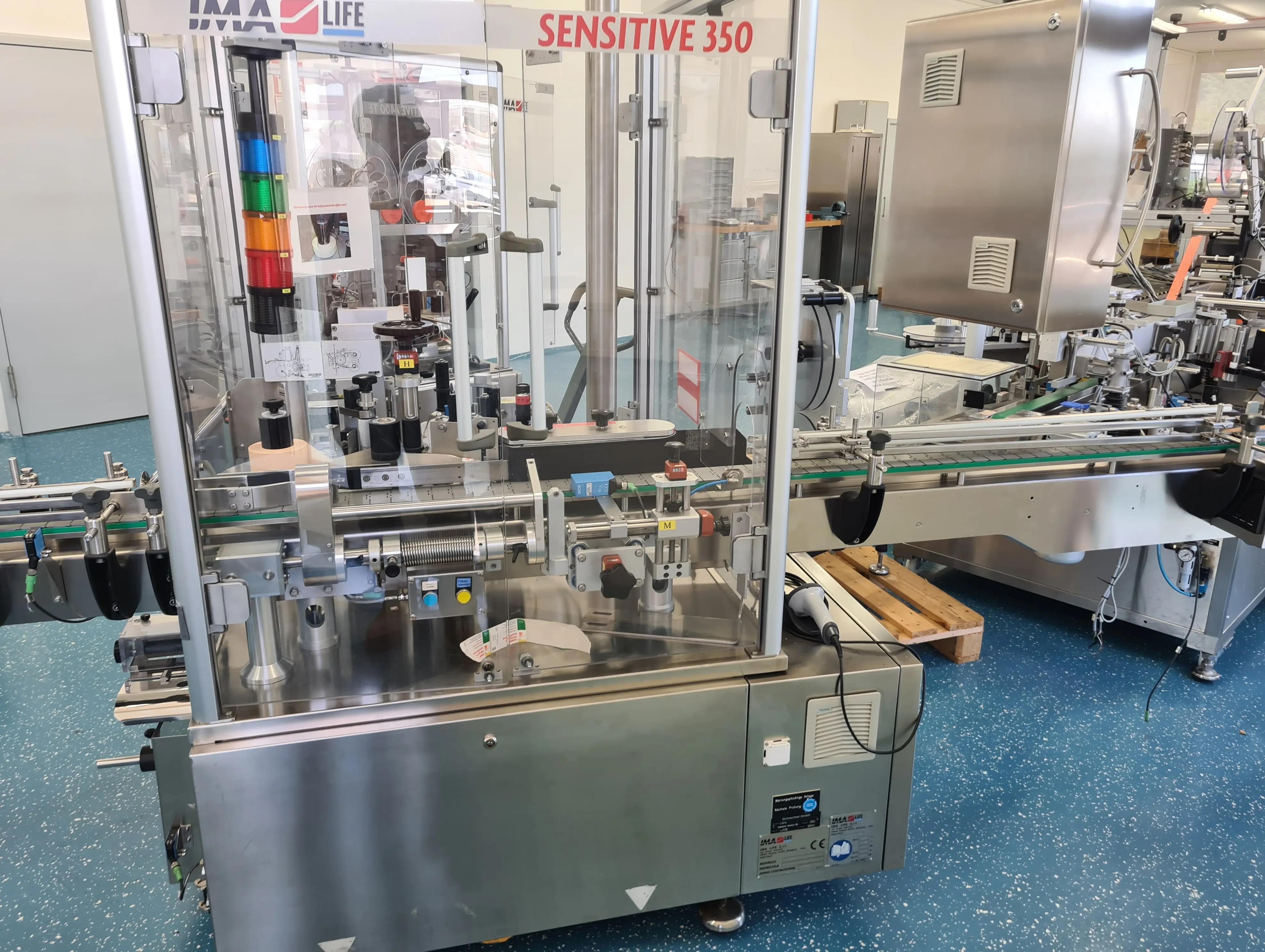

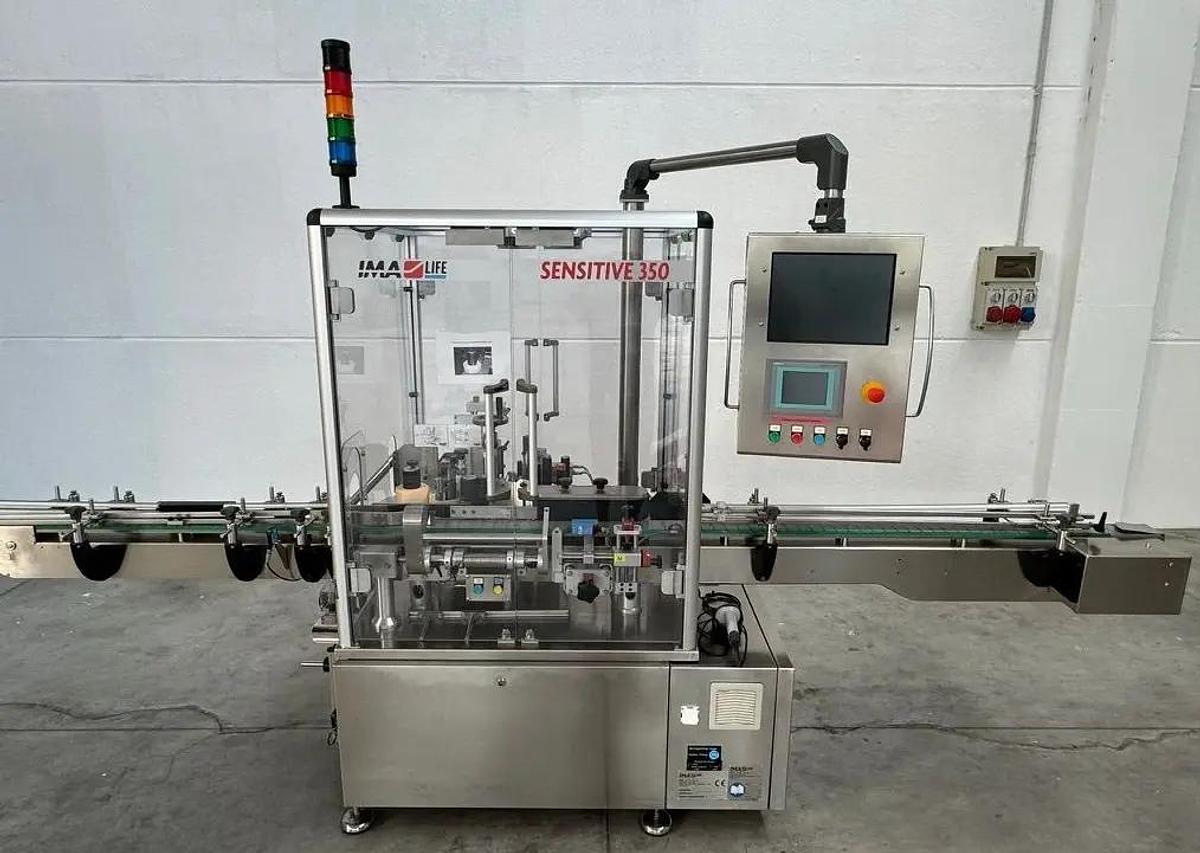

IMA VIALS LABELLING MACHINE, MODEL SENSITIVE 350

Year of construction: 2010



Labelling machine for vials and bottles. A simple design for effectively handling cylindrical containers.

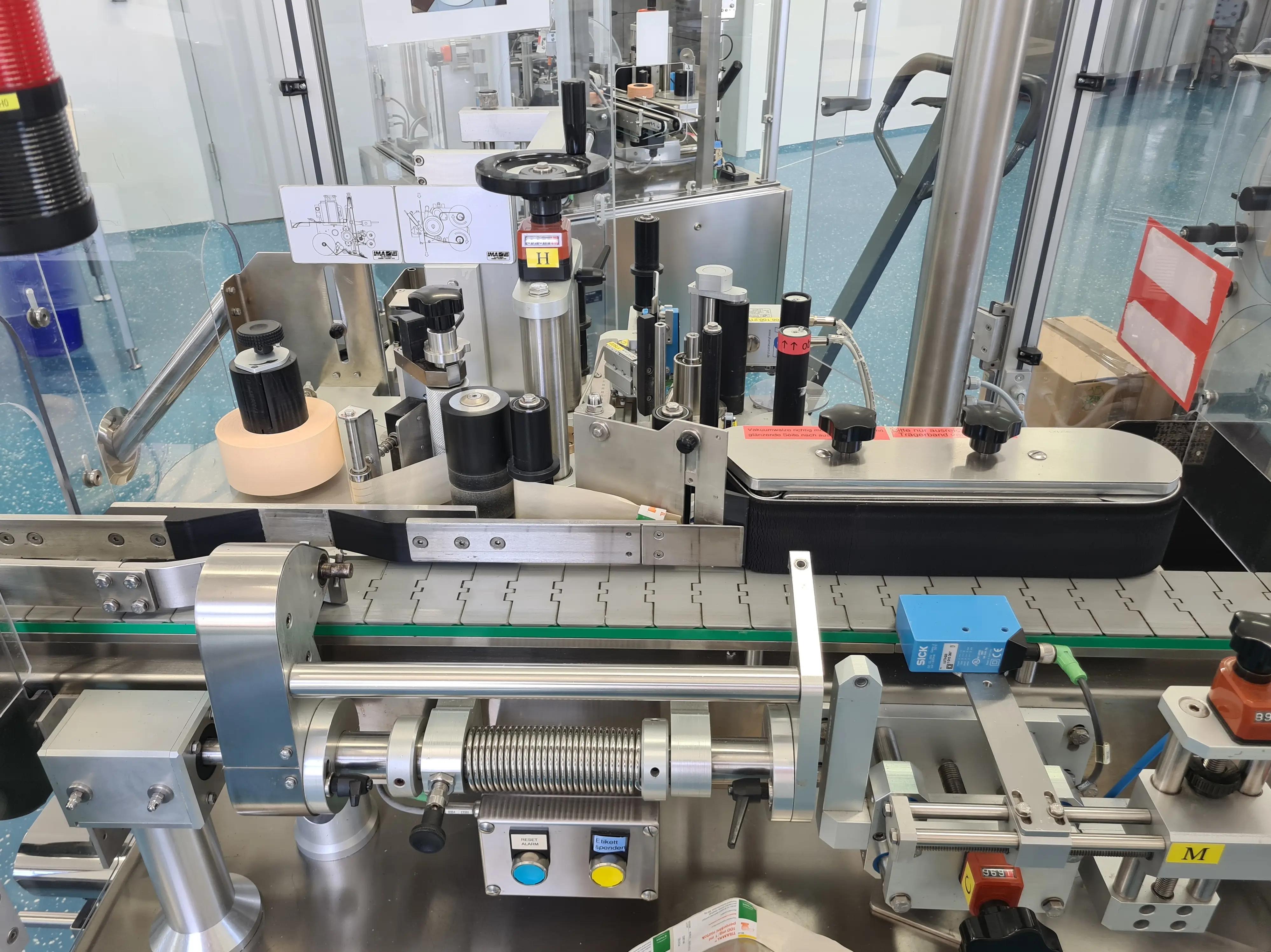

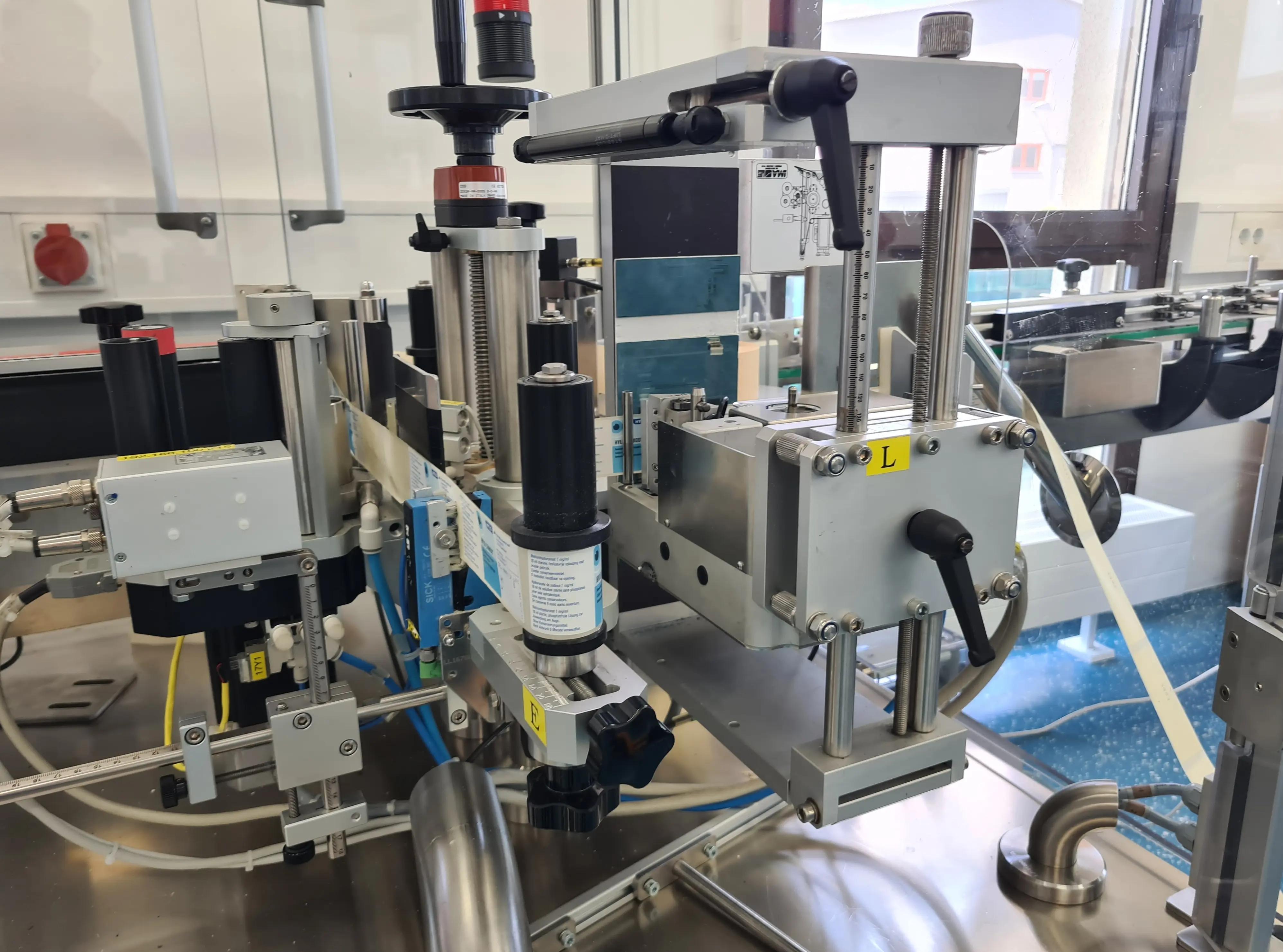

  • equipped with one side labelling head, for applying the label with high accuracy thanks to an appropriate spacing between the containers and an easy-to-regulate application group

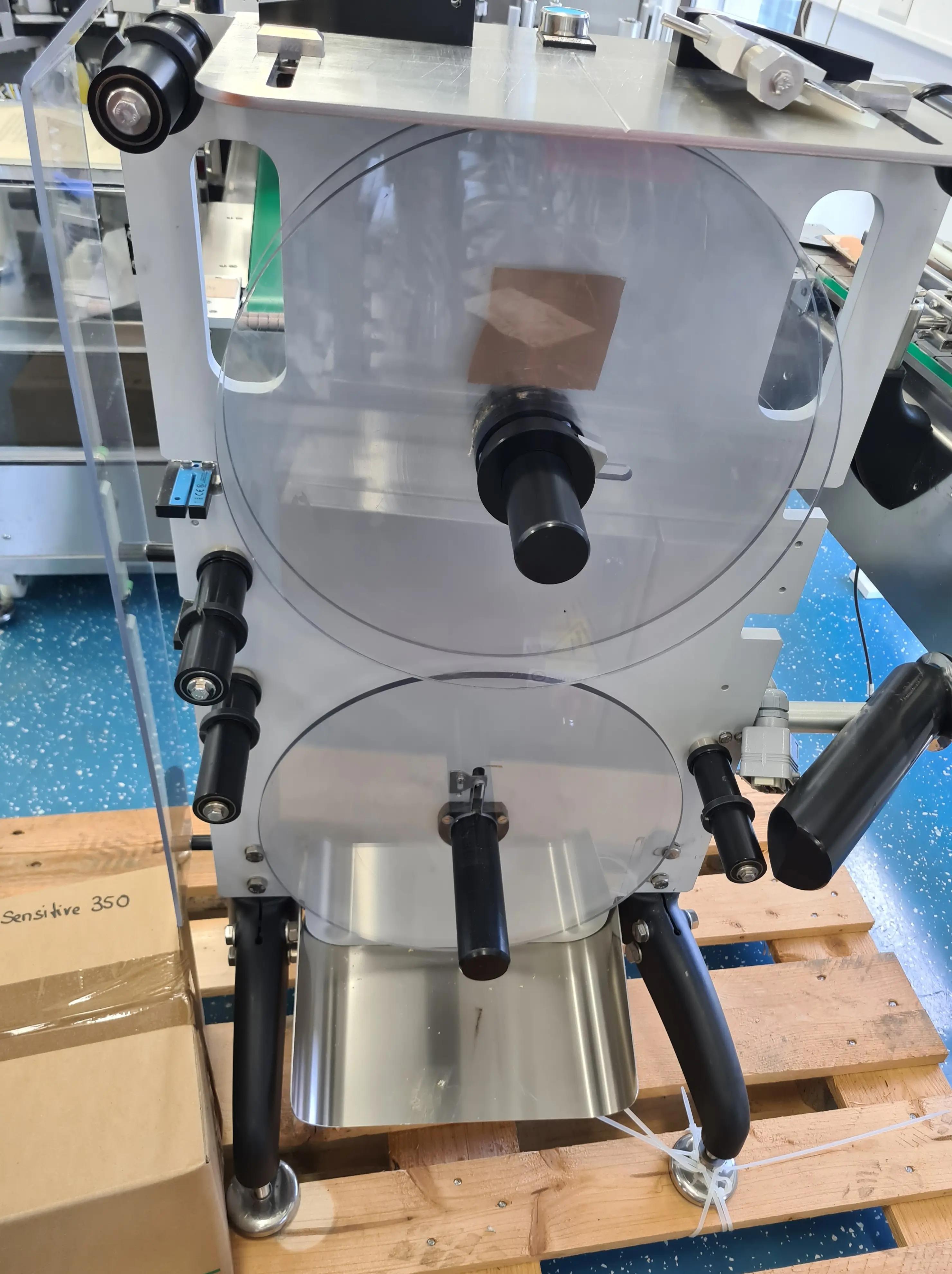

  • labelling unit is installed in the machine basement for direct access to the labelling reels

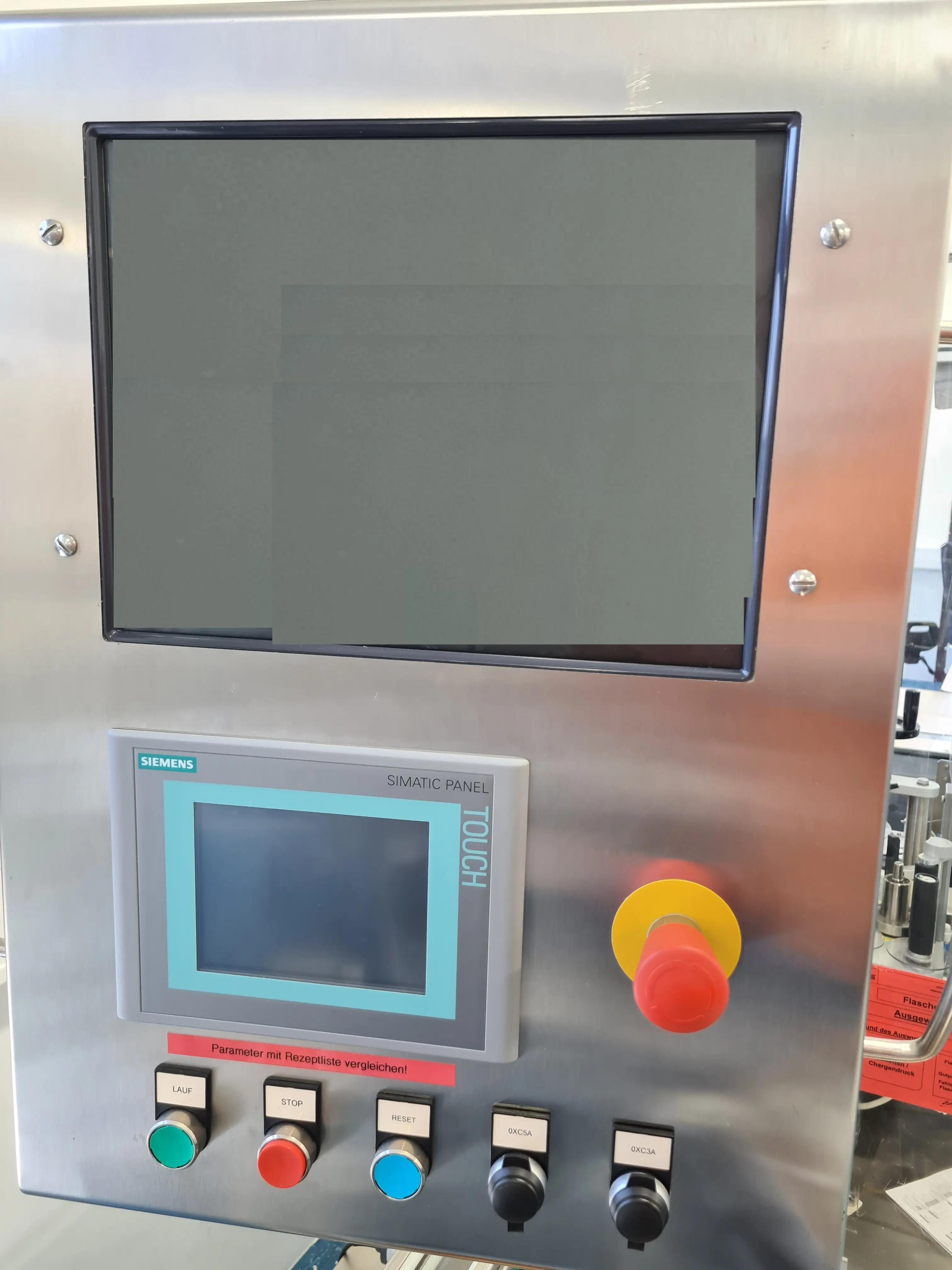

  • supervision and monitoring of the process through a PLC with a user-friendly HMI



TECHNICAL DATA



Production details


  • Bottle maximum height (mm): 220
  • Bottle diameter (mm): 16-78
  • Maximum output (pieces/minute): 350



Labels


  • Label length (mm): 15-250
  • Label height (mm): 10-100
  • Label reel diameter (mm): 400
  • Label accuracy (mm): ±1



Electrical usage


  • Standard voltage: 400 V – 50 Hz
  • Installed power (kW): 2
