ALEXANDERWERK - Roller Compactor

or
Call +390514086204

Specifications

ManufacturerALEXANDERWERK
ModelWP 200
Year2004
ConditionUsed
Serial NumberMLTC-07-057
Stock NumberMLTC-0007-WH

Description

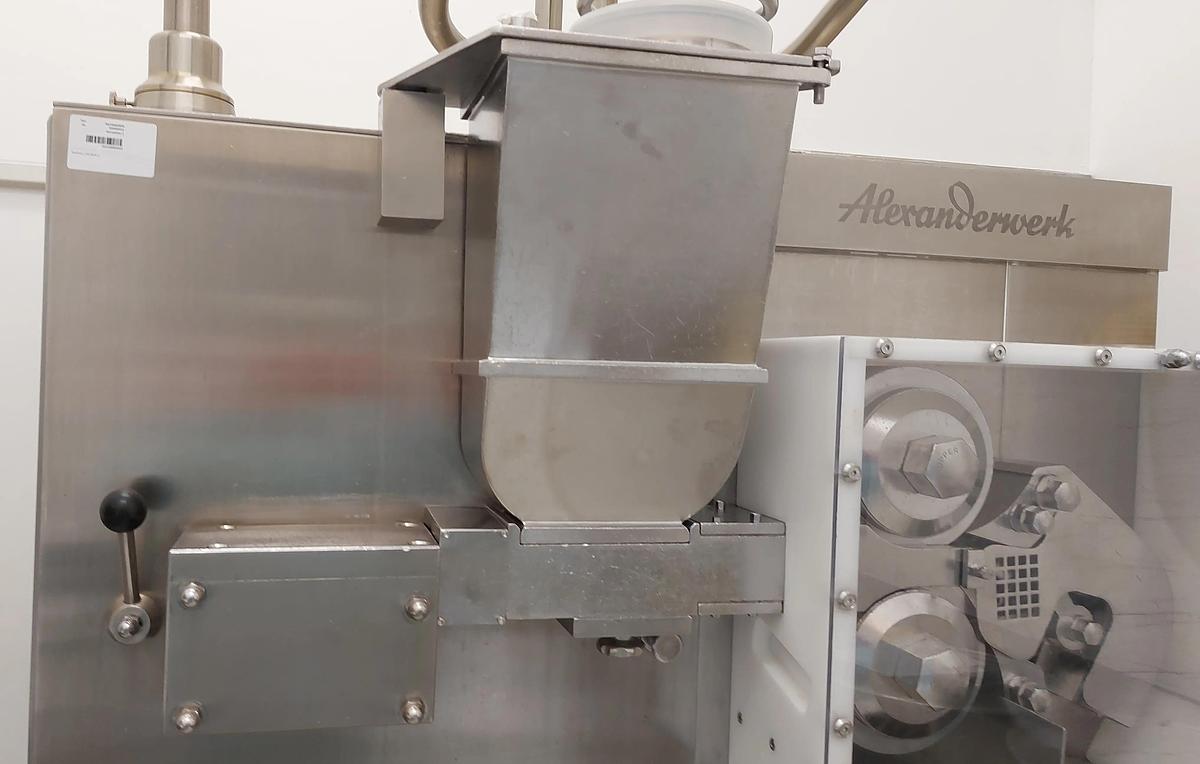

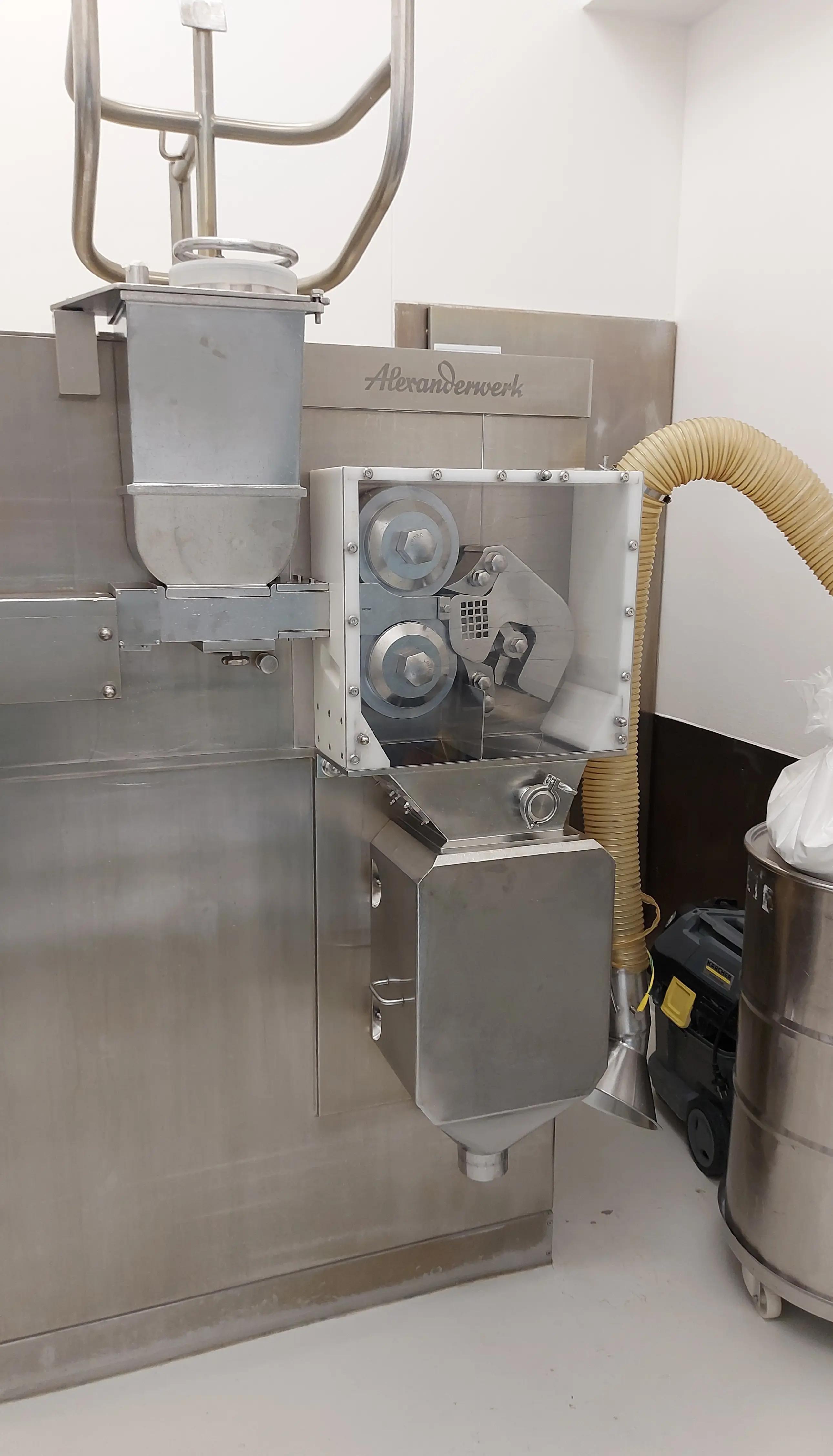

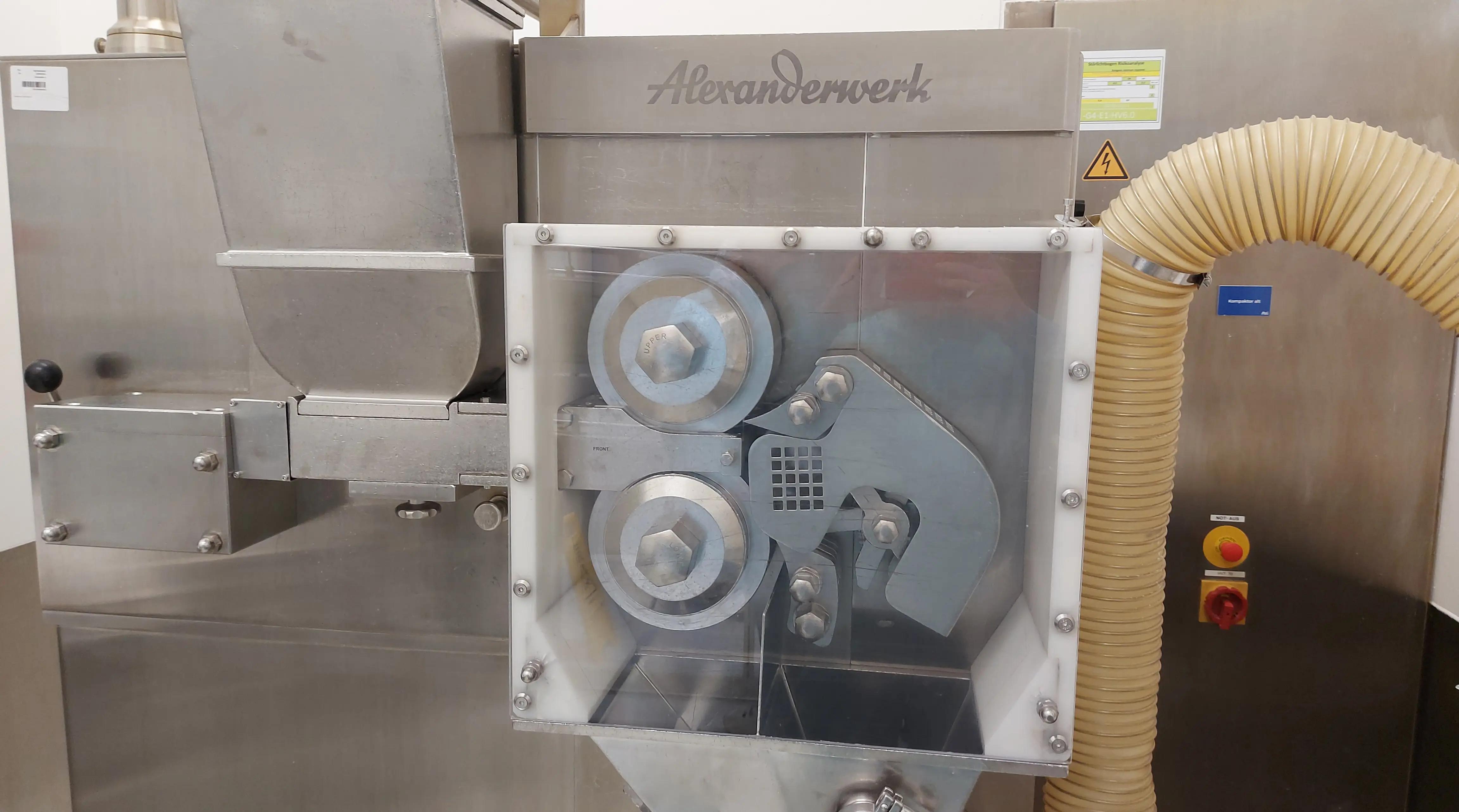

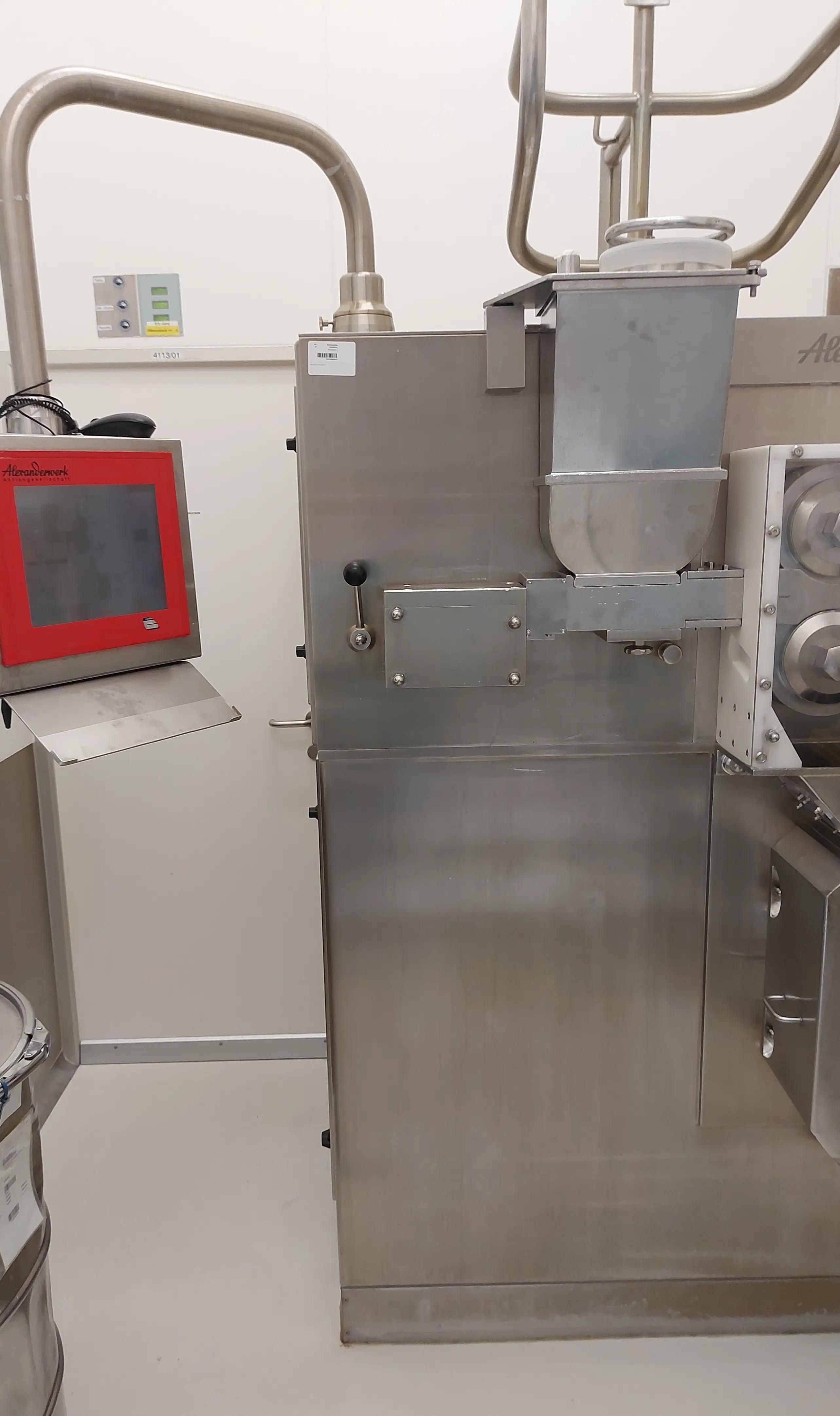

ALEXANDERWERK ROLLER COMPACTOR, MODEL WP 200

Year of manufacture: 2004


Machine for compaction of raw material by the press rollers under hydraulic pressure. Compacting force infinitely adjustable by means of the hydraulic system.



MACHINE CHARACTERISTICS

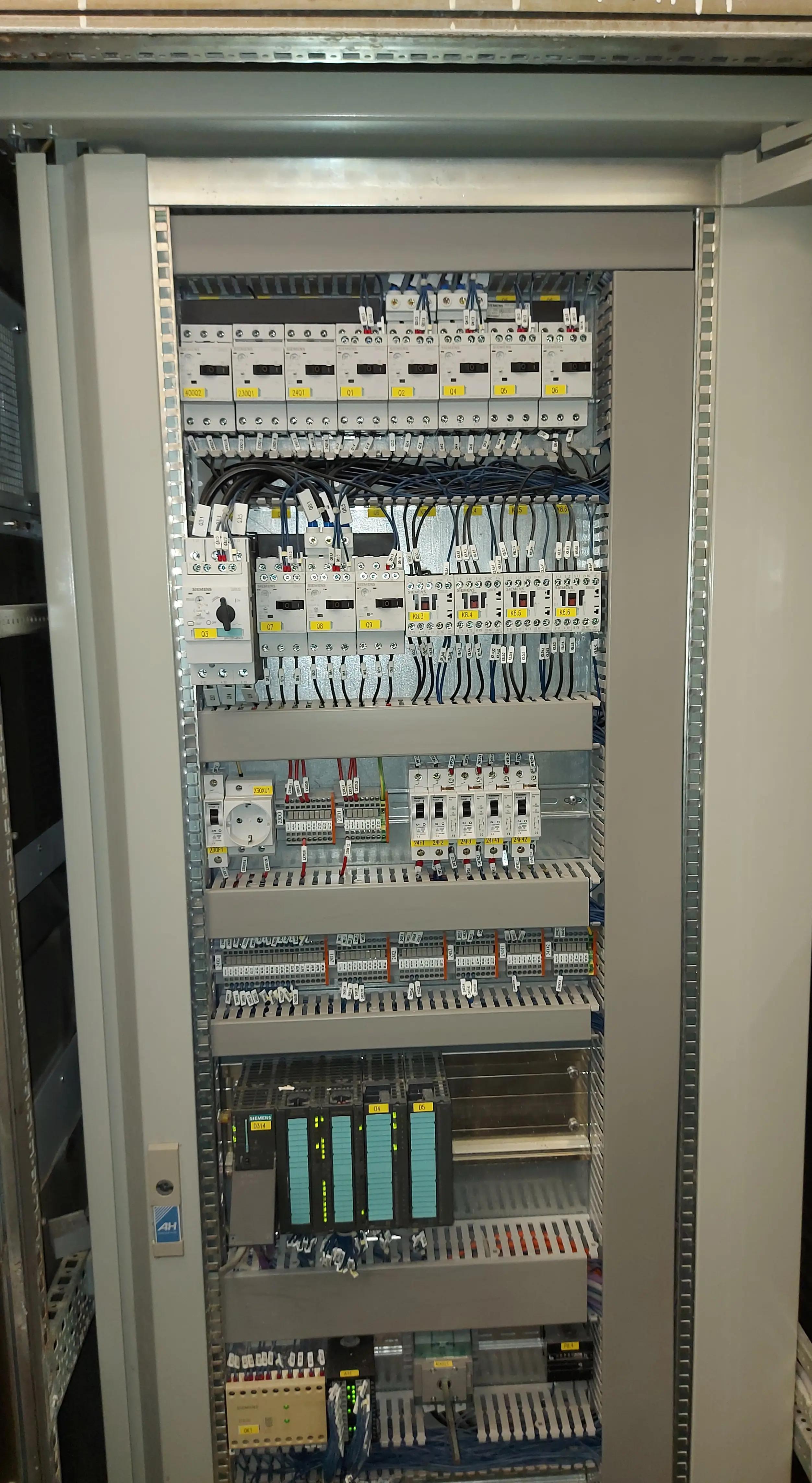

  • Control system: external control cabinet
  • Roller diameter: 200 mm
  • Roller width: 75 mm



PRODUCTION


  • Output: up to 500 kg/h


  • Maximum pressing force: 20 kN/cm
  • Maximum roller gap: 5 mm
  • Maximum roller speed: 38 U/min



DIMENSIONS


  • Footprint: 2,010 mm x 1,245 mm x 1,700 mm
  • Weight: 2,450 kg


  • Cabinet height: 2,100 mm
  • Cabinet width: 800 mm
  • Cabinet depth: 600 mm


  • Weight without switch cabinet: 2,050 kg
  • Switch cabinet weight: 400 kg
