NERI MARCHESINI - Labelling Machine - BL400 VTE

or
Call +39 051 4086204

Specifications

ManufacturerNERI MARCHESINI
ModelBL400 VTE
Year2006
ConditionUsed
Serial NumberMLTC-10-IT372
Stock NumberMLTC-0010-WH

Description

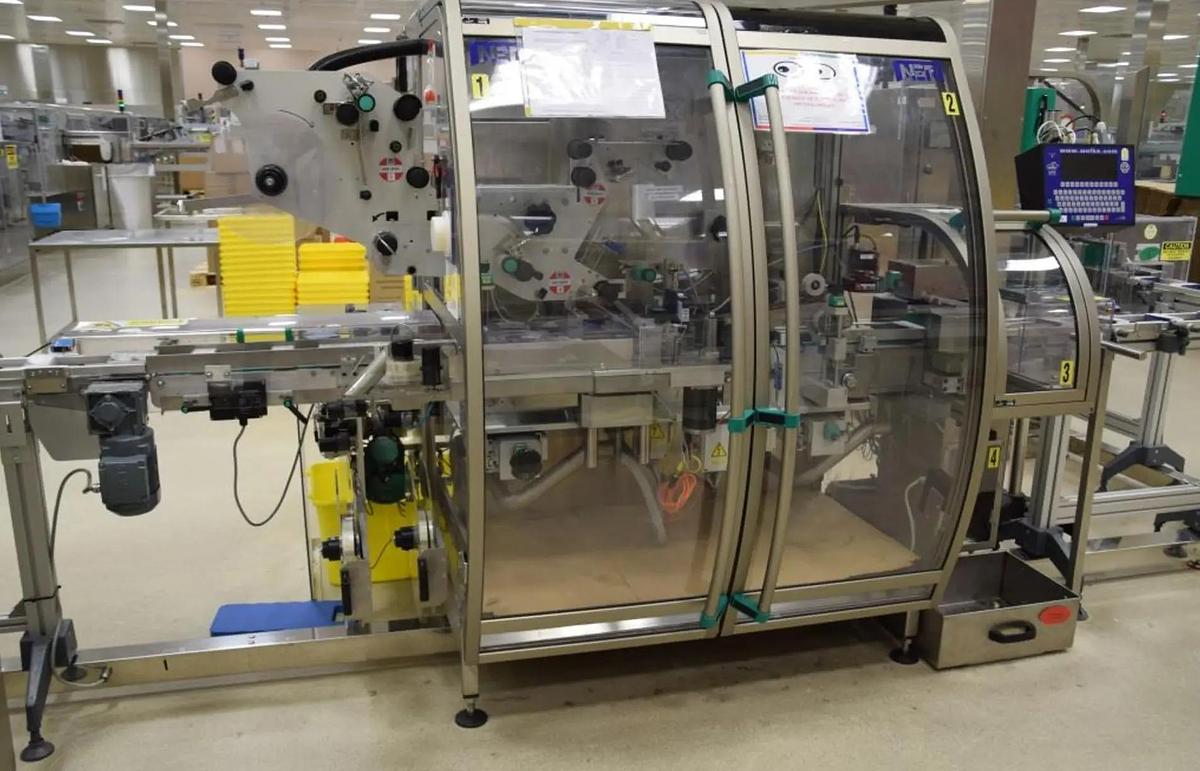

NERI MARCHESINI LABELLING MACHINE, MODEL BL400 VTE

Year of construction: 2006



Labelling machine with stainless steel balcony construction, for facilitating the clearance procedures. The machine is divided in three areas: operative, mechanical and electrical.


  • easy access from behind to electrical and mechanical parts
  • electrical cabinet on machine board

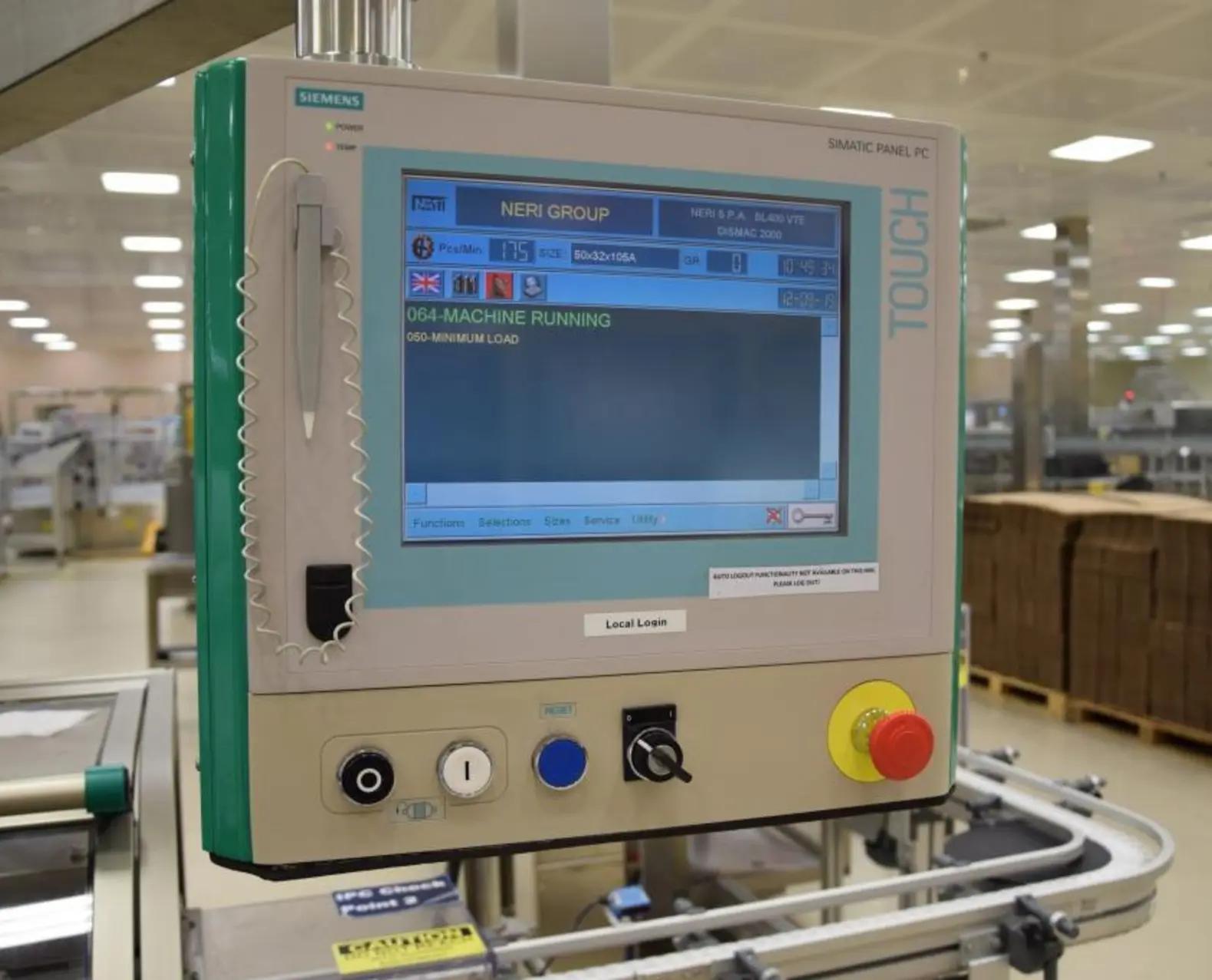

  • self-diagnosis on 6” colour touch display on a swiveling arm
  • automatic label changing system with set-up by keyboard and possibility to memorize different label sizes



WORKING CHARACTERISTICS


  • Maximum rate (pcs/min): 400
  • Label speed: 0 ÷ 50 m/min


CARTON SIZES

  • Carton width: 20 ÷ 180 mm
  • Carton height: 15 ÷ 120 mm
  • Carton length: 70 ÷ 200 mm


  • Vignette height: 20 ÷ 60 mm
  • Vignette length: 15 ÷ 80 mm


  • Maximum reel diameter: 400 mm



ENERGY CONSUMPTION


  • Std. electric power supply: 380 - 220 V-50 Hz
  • Installed power: 2 kW
  • Compressed air pressure: 6 bar
  • Compressed air consumption: 20 Nl/min
