NERI MARCHESINI - Labelling Machine - BL400VTE-TT

or
Call +39 051 4086204

Specifications

ManufacturerNERI MARCHESINI
ModelBL400VTE-TT
Year2012
ConditionUsed
Serial NumberMLTC-10-25-1904
Stock NumberMLTC-0010-WH

Description

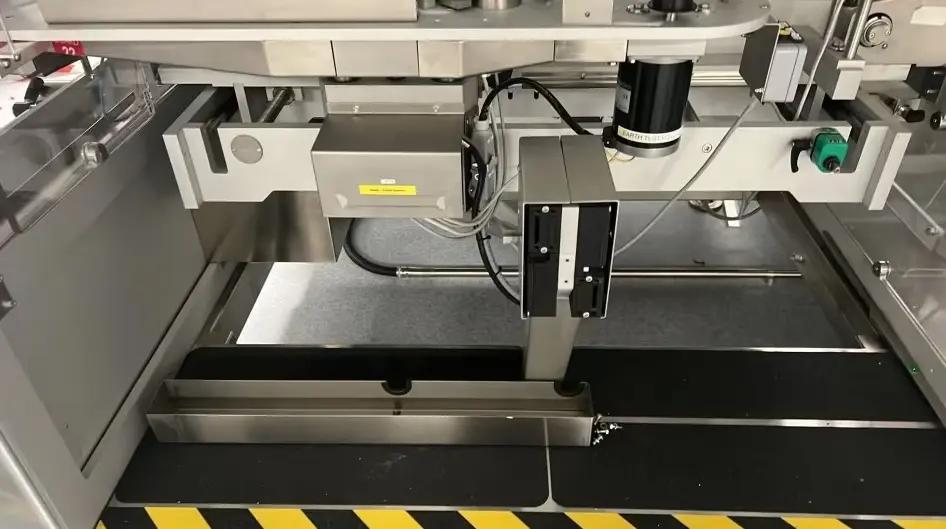

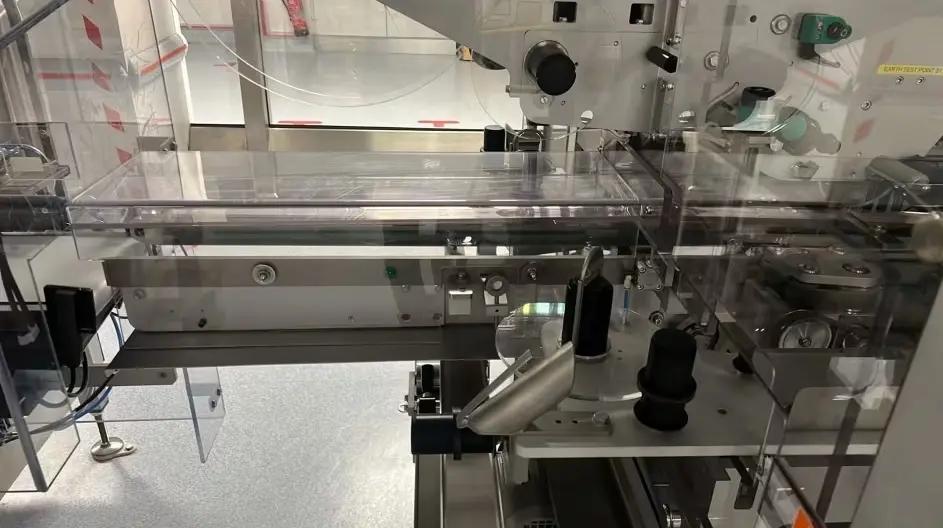

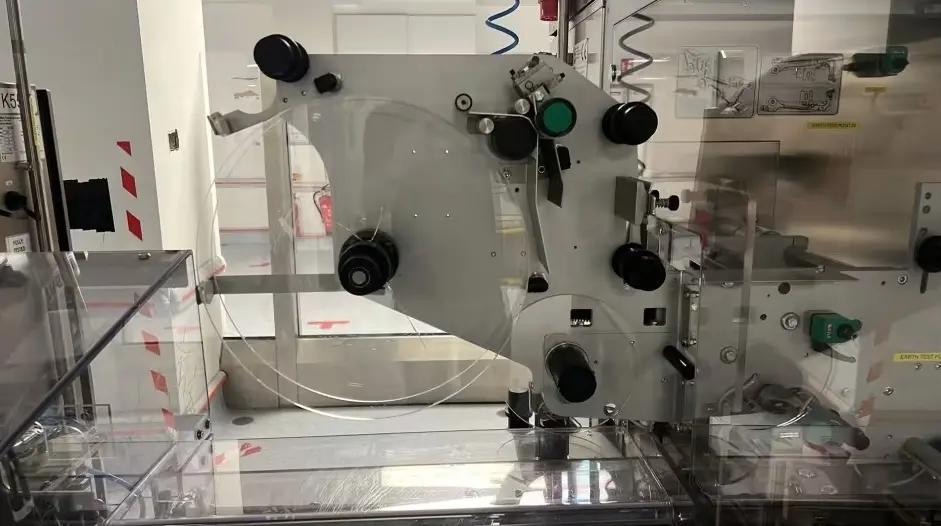

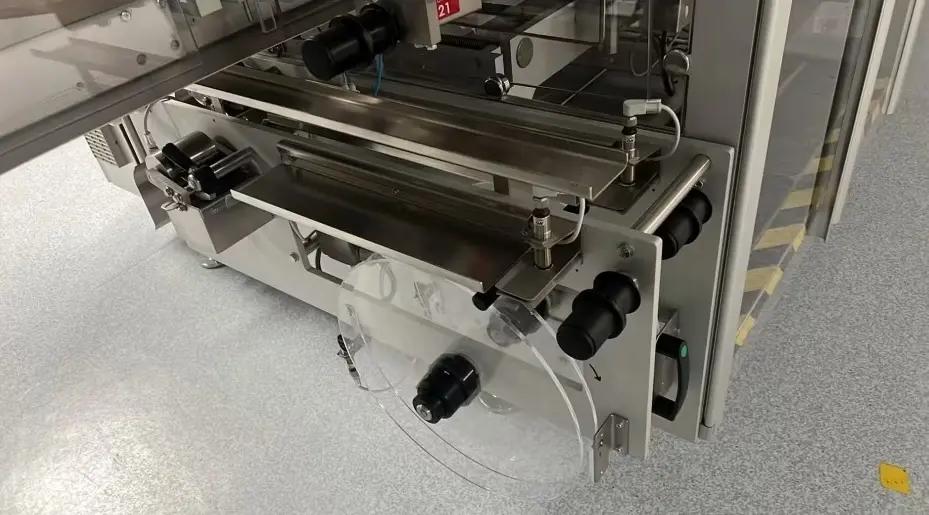

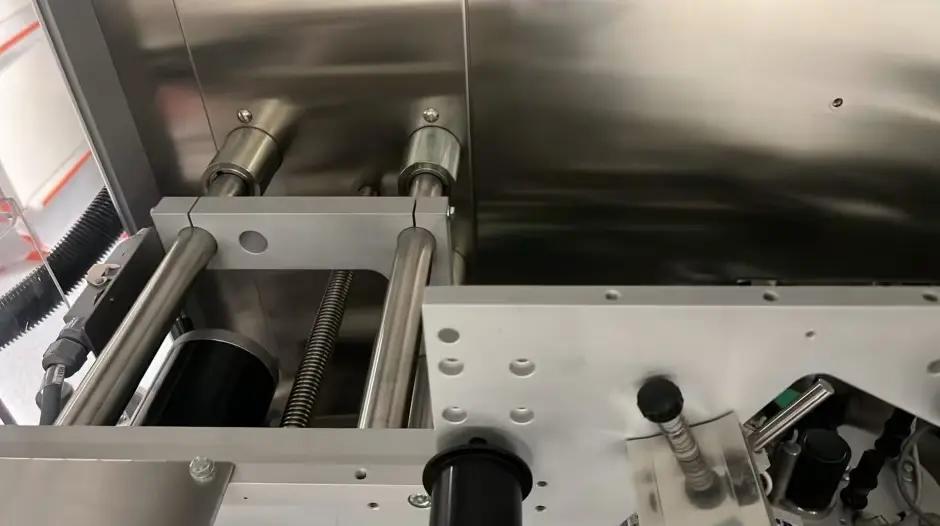

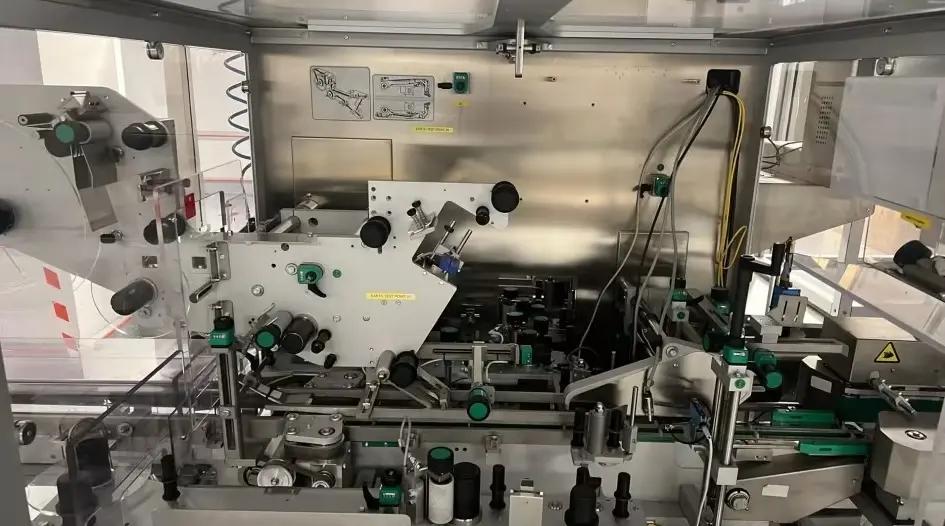

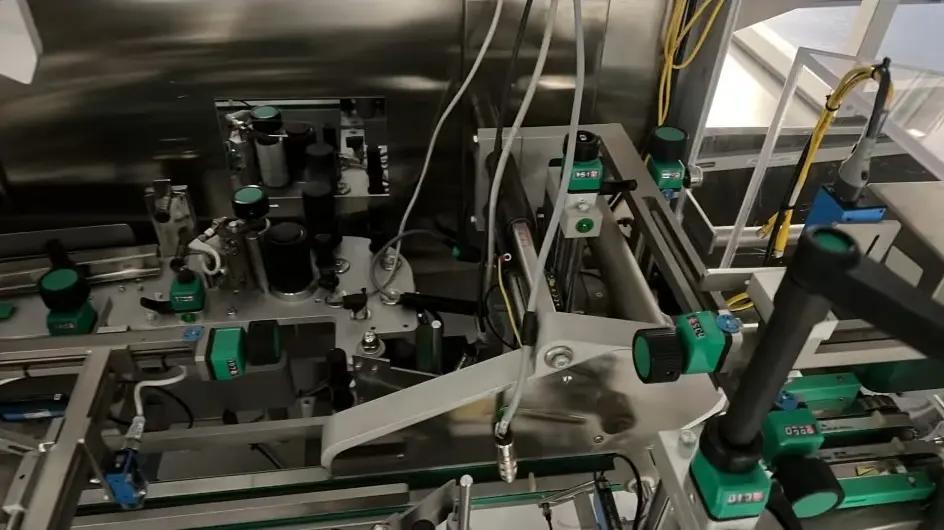

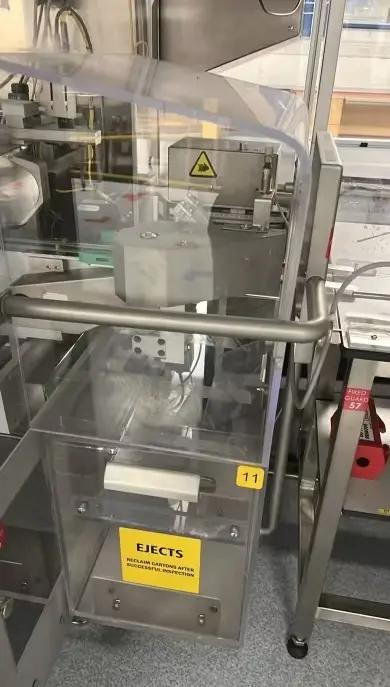

NERI MARCHESINI LABELLING MACHINE, MODEL BL400VTE-TT

Year of construction: 2012



Continuous movement balcony machine, built in steel in accordance with GMP standards. Suitable for the installation of an Ink-jet or Laser printing system on the upper face and/or on both sides of the case, or relative controls with camera.



MACHINE CHARACTERISTICS


  • Machine stops if a door is opened
  • Compressed air control pressure switch, with machine stop at low level detection
  • Cartons counter (outgoing and rejected)


  • Electrical panel on board

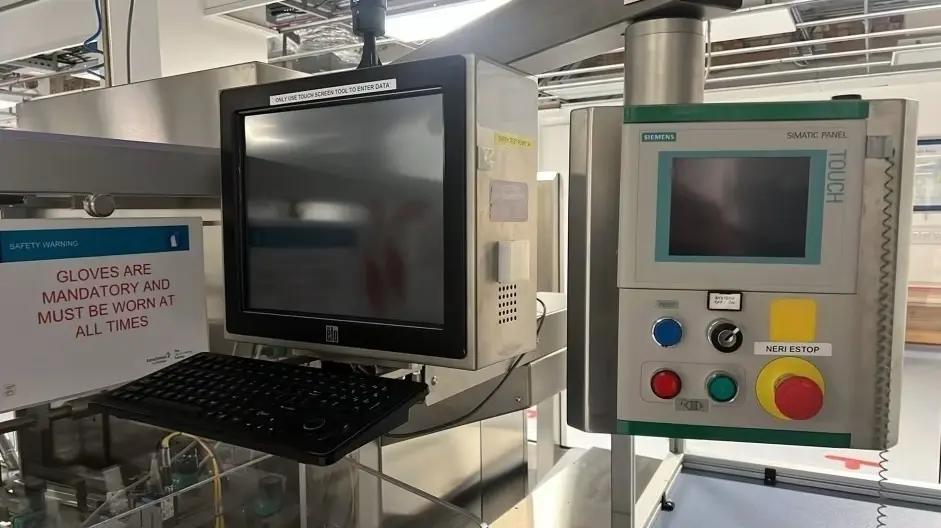

  • TP700 Touch Screen operator terminal, 5.7″ color, seven levels of passwords
  • PLC SIEMENS



PRODUCTION CHARACTERISTICS


  • Production speed: up to 400 pcs/min
  • Label speed: 0 to 60 metres/minute


  • Roll diameter: 400 mm (max)
  • Core diameter: 45 or 75 mm


Case format

  • A: Min 20 mm - Max 120 mm
  • B: Min 15 mm - Max 90 mm
  • H: Min 70 mm - Max 250 mm


Stamps

  • A: Min 15 mm - Max 80 mm
  • B: Min 20 mm - Max 60 mm


Seals

  • A: Min 15 mm - Max 60 mm
  • B: Min 15 mm - Max 30 mm



ENERGY CONSUMPTION


  • Power supply: 400 Volt, 3 phases, 50 Hertz
