MARCHESINI - Labelling Machine - BL400VTE-TT

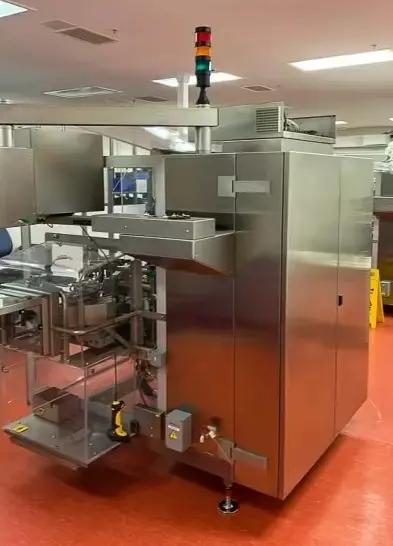

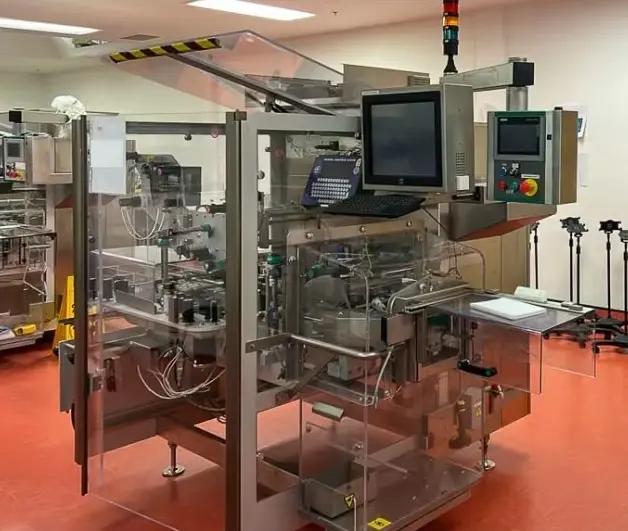

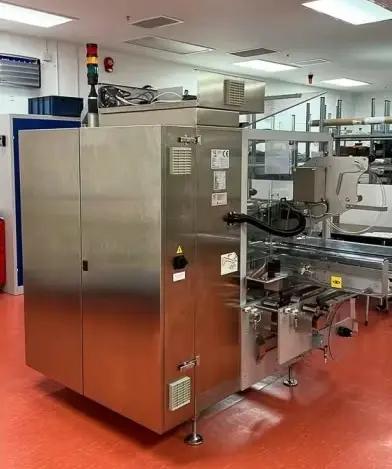

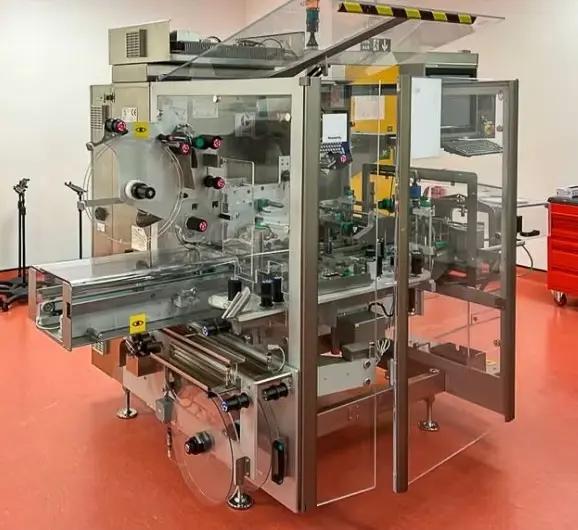

MARCHESINI LABELLING MACHINE, MODEL BL400VTE-TT

Year of construction: 2014

Continuous movement balcony machine, suitable for applying at high speed self-adhesive vignettes on the upper face of the cases and self-adhesive seals on the closing corners of the cases with equal or alternating flaps. Works with other machines in line.

Built in AISI304 stainless steel, in accordance with GMP standards.

MACHINE CHARACTERISTICS

• PLC SIEMENS Electrical panel on board (TP700 Touch Screen operator terminal, 5.7″ color, seven levels of passwords)
• Accident prevention guards in aluminum and methacrylate. Schmersal type safety switches
• Compressed air control pressure switch
• Processed and rejected cartons counter
• Work hour counter
• Delivered with CE mark

WORKING CHARACTERISTICS

• Speed: 0 - 60 metres/minute
• Production speed: up to 400 pcs/min

• Roll diameter: maximum 400 mm
• Core diameter: 45 or 75 mm

Case format

• A (width): Min 20 mm - Max 120 mm
• B (thickness): Min 15 mm - Max 90 mm
• H (length): Min 70 mm - Max 250 mm

Stamps

• A (length): Min 15 mm - Max 80 mm
• B (height): Min 20 mm - Max 60 mm

Seals

• A (length): Min 15 mm - Max 60 mm
• B (height): Min 15 mm - Max 30 mm

ELECTRICITY CHARACTERISTICS

• Power supply: 400 Volt, 3 phases, 50 Hertz, Earth & Neutral wiring
