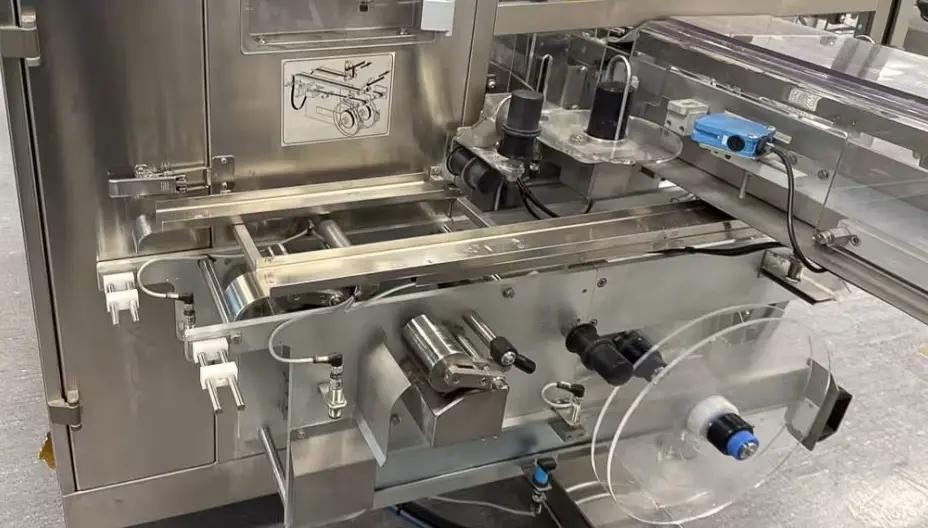

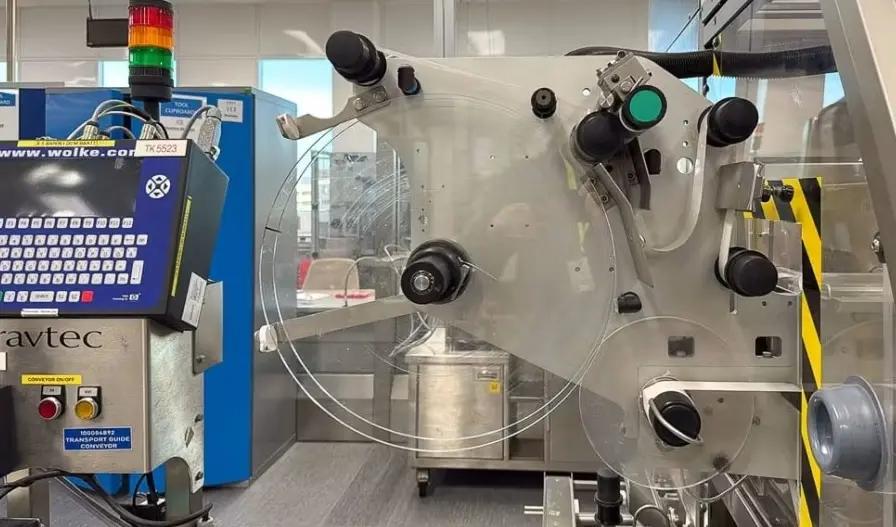

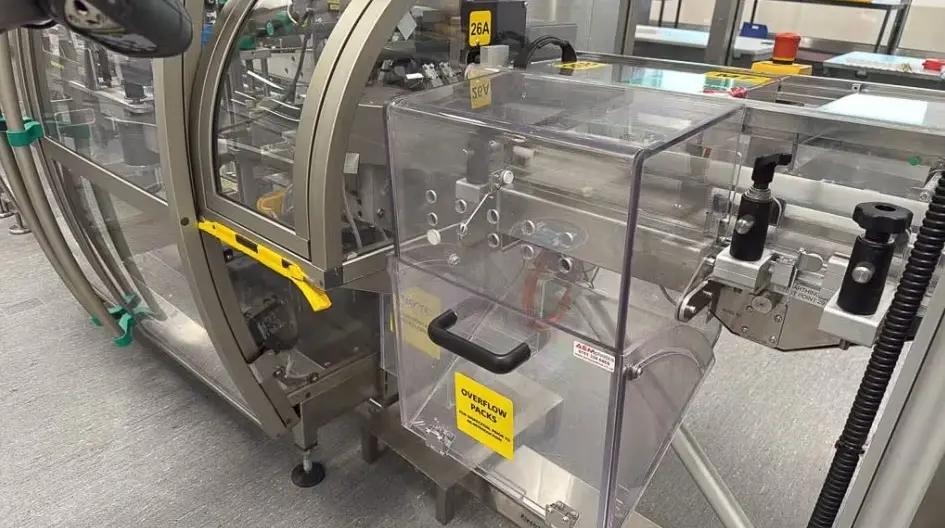

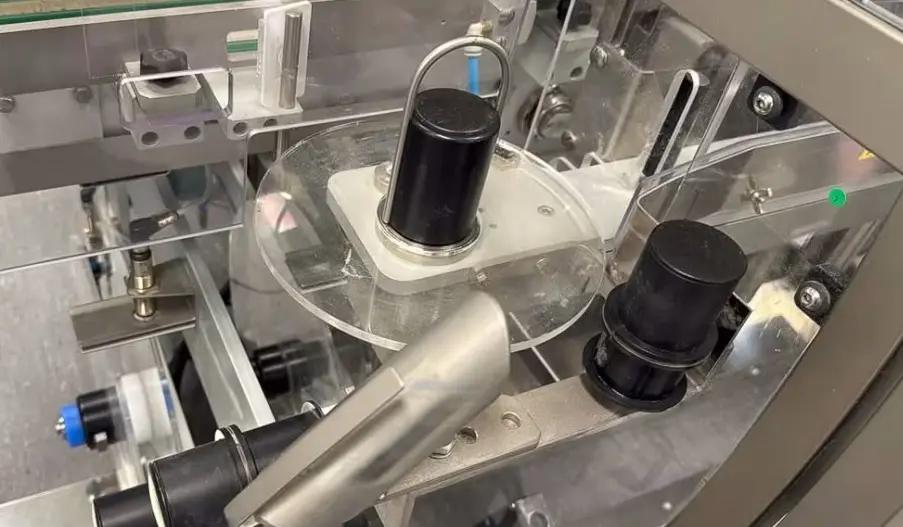

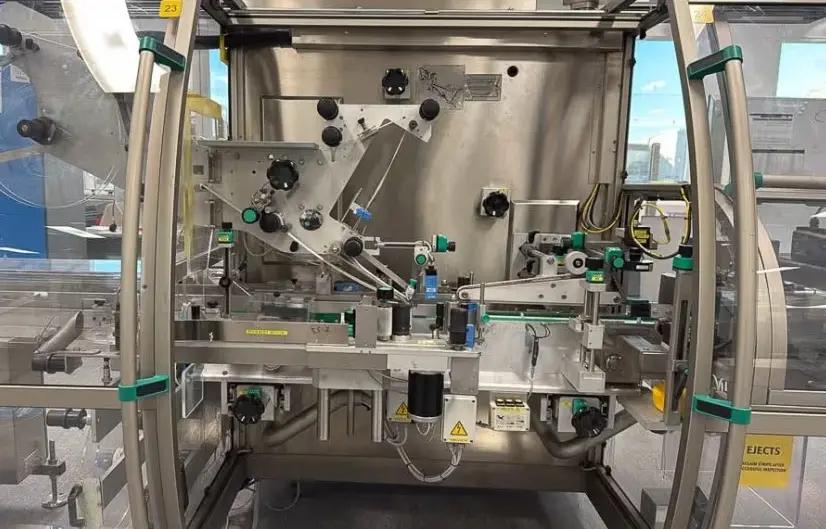

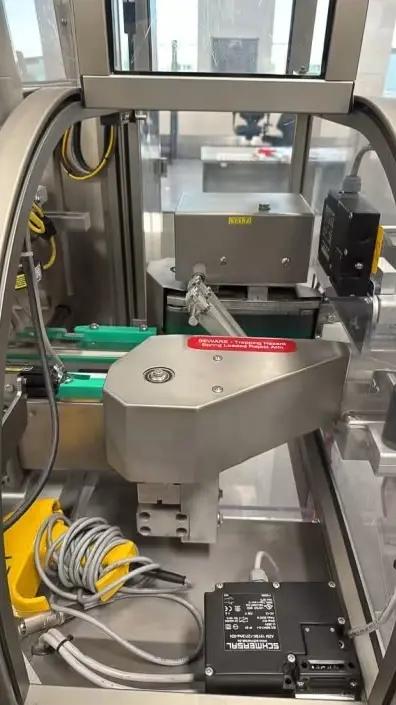

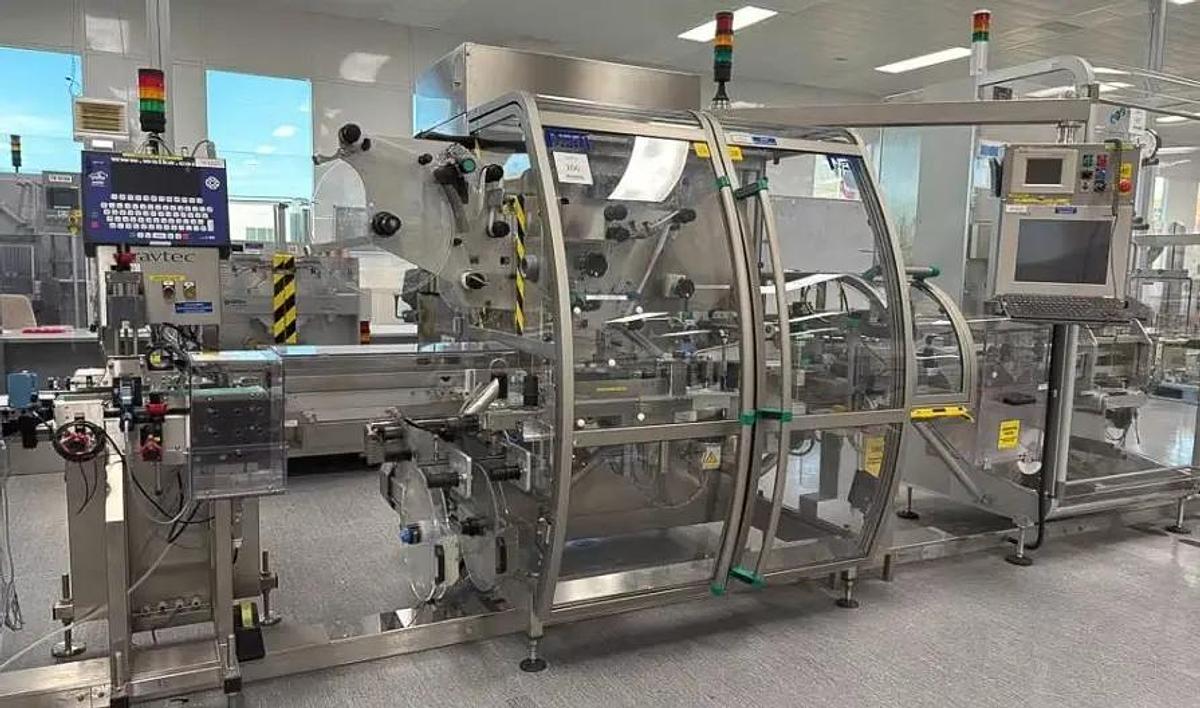

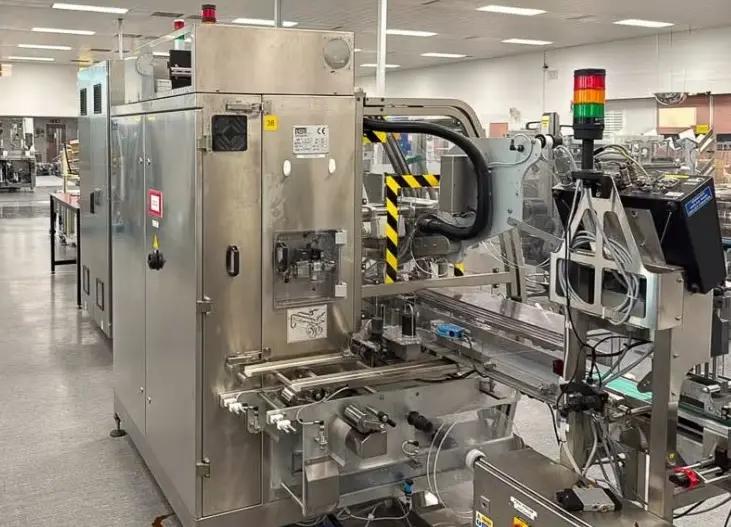

NERI MARCHESINI - Labelling Machine - 400 VTE

NERI MARCHESINI LABELLING MACHINE, MODEL 400 VTE

Year of construction: 2007

Carton labelling machine with special balcony design, for making cleaning and inspection operations extremely easy and reducing the operating field to only 70 cm. The positive pitch carton transport system makes the machine completely fail-safe.

MACHINE FEATURES

• Balcony machine with brushed stainless steel frame

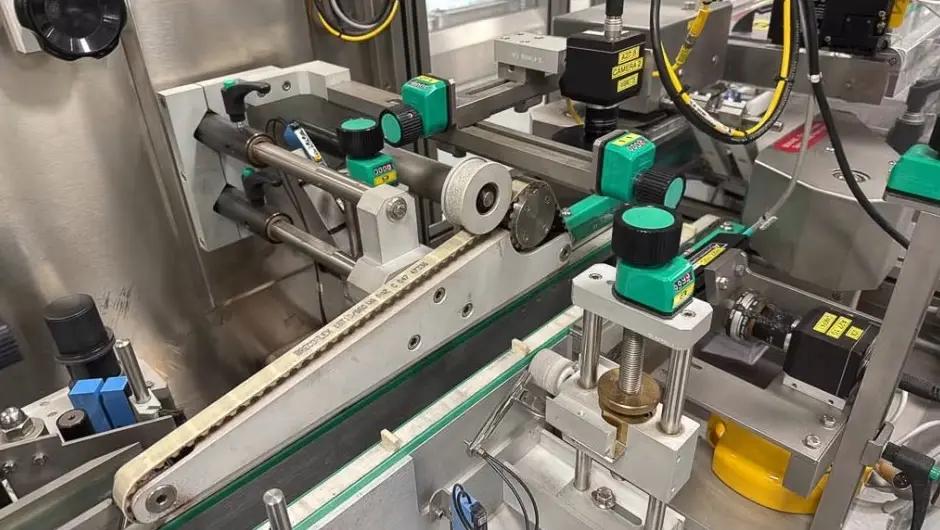

• Upper belt stabilizing the cartons during the application phase of the two inviolability seals (VET and TE)
• Electrical panel on board the machine

• Double horizontal infeed carton accumulation belts

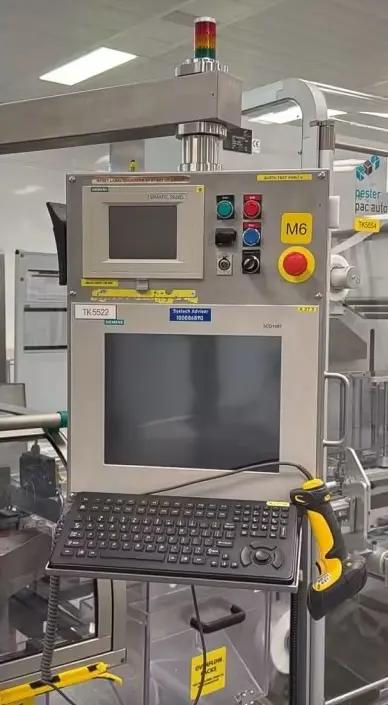

• 6" color video for self-diagnosis installed on rotating arm
• Minimum input load and maximum output load control device

PRODUCTION CHARACTERISTICS

• Maximum output (pcs/min): 400
• Label output speed: 0 ÷ 50 m/min

• Width of cartons (A): 20 ÷ 180 mm
• Carton height (B): 15 ÷ 120 mm
• Carton length (C): 70 ÷ 200 mm

• Label length: 15 ÷ 80 mm
• Label height: 20 ÷ 60 mm
• Maximum roll diameter: 400 mm

ENERGY CONSUMPTION

• Standard power supply: 380 - 220 V-50 Hz
• Power: 4 kW
• Compressed air pressure: 6 bar
• Compressed air consumption: 20 Nl/min

DIMENSIONS

• Weight: 90 Kg
