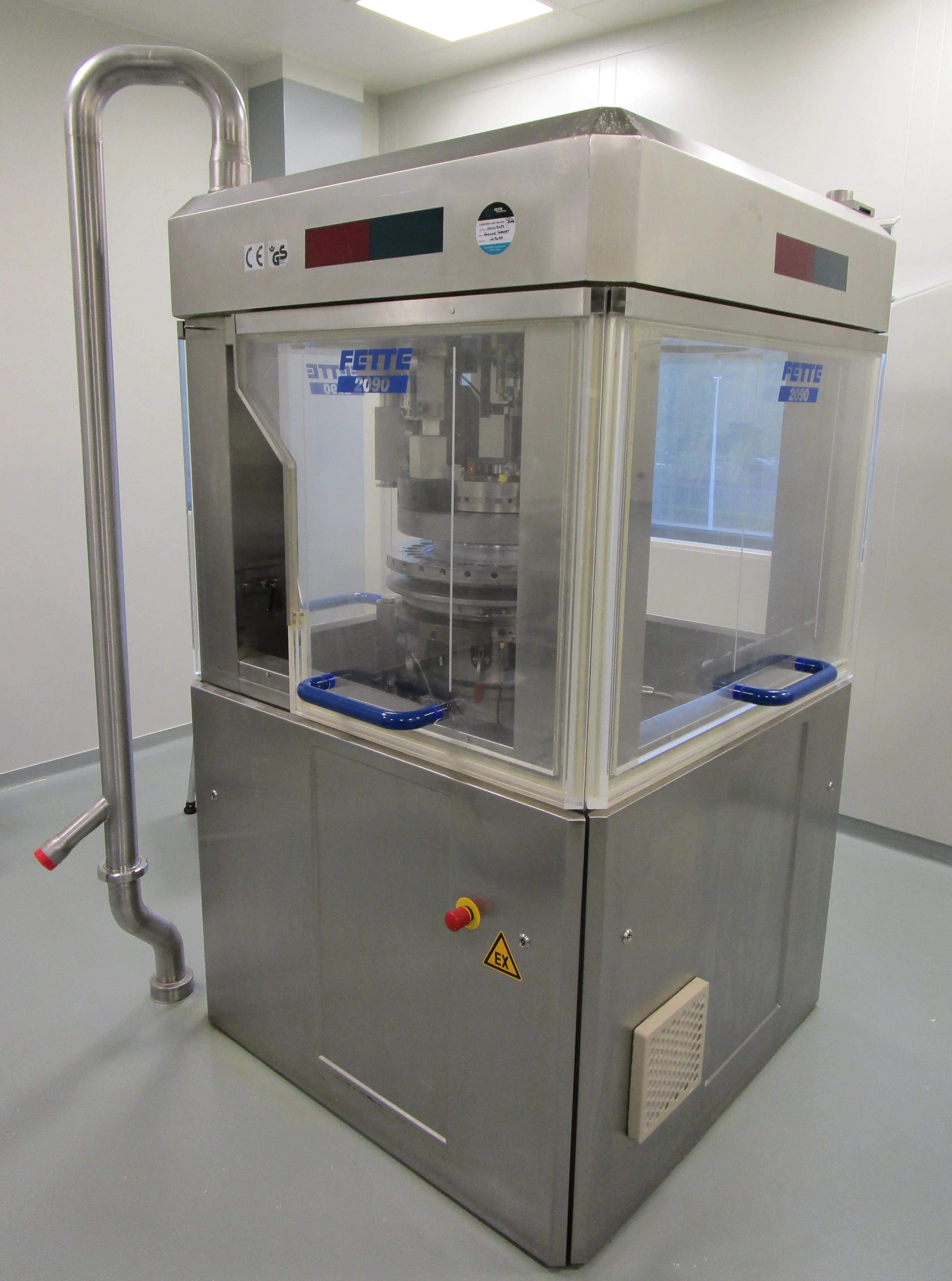

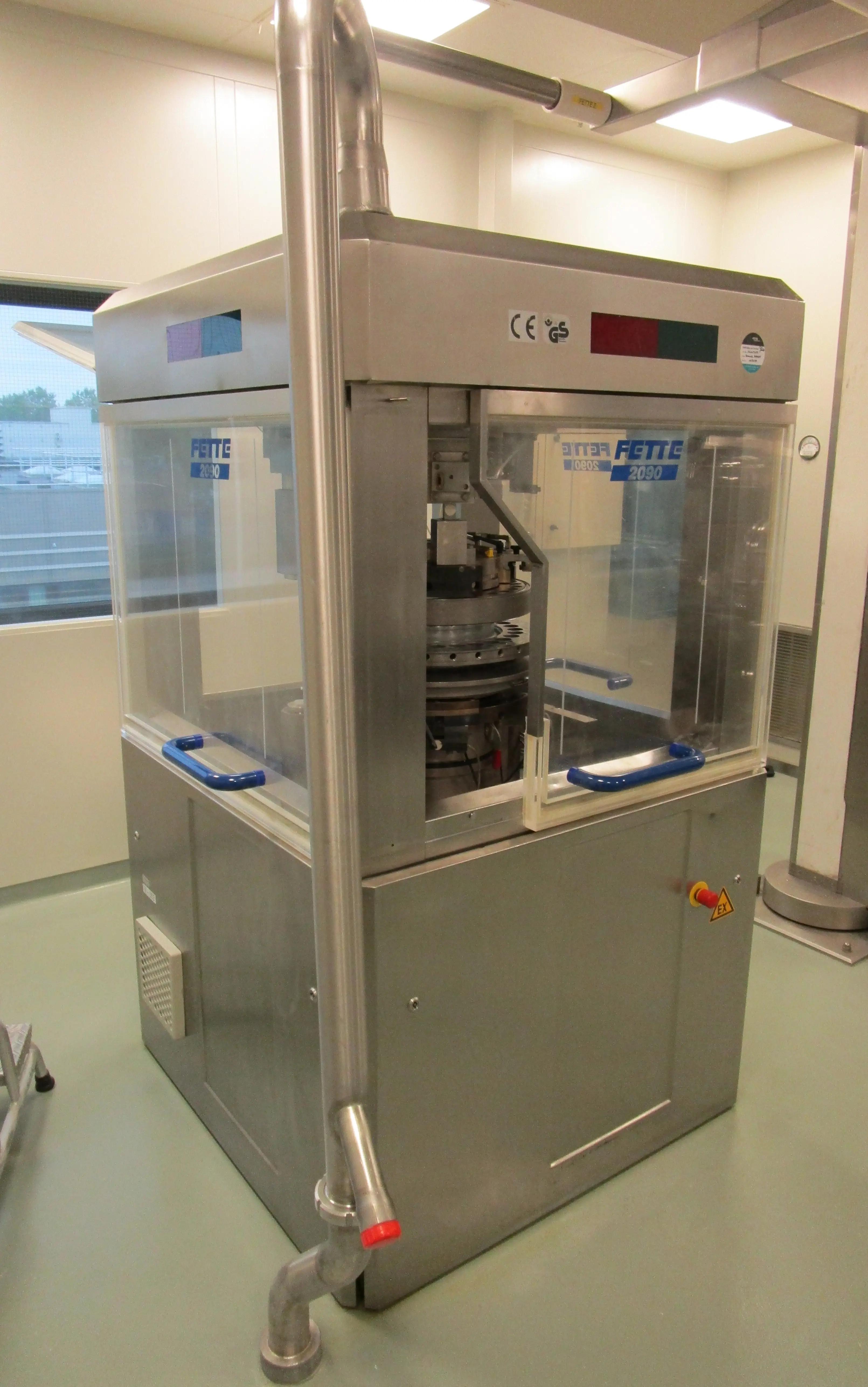

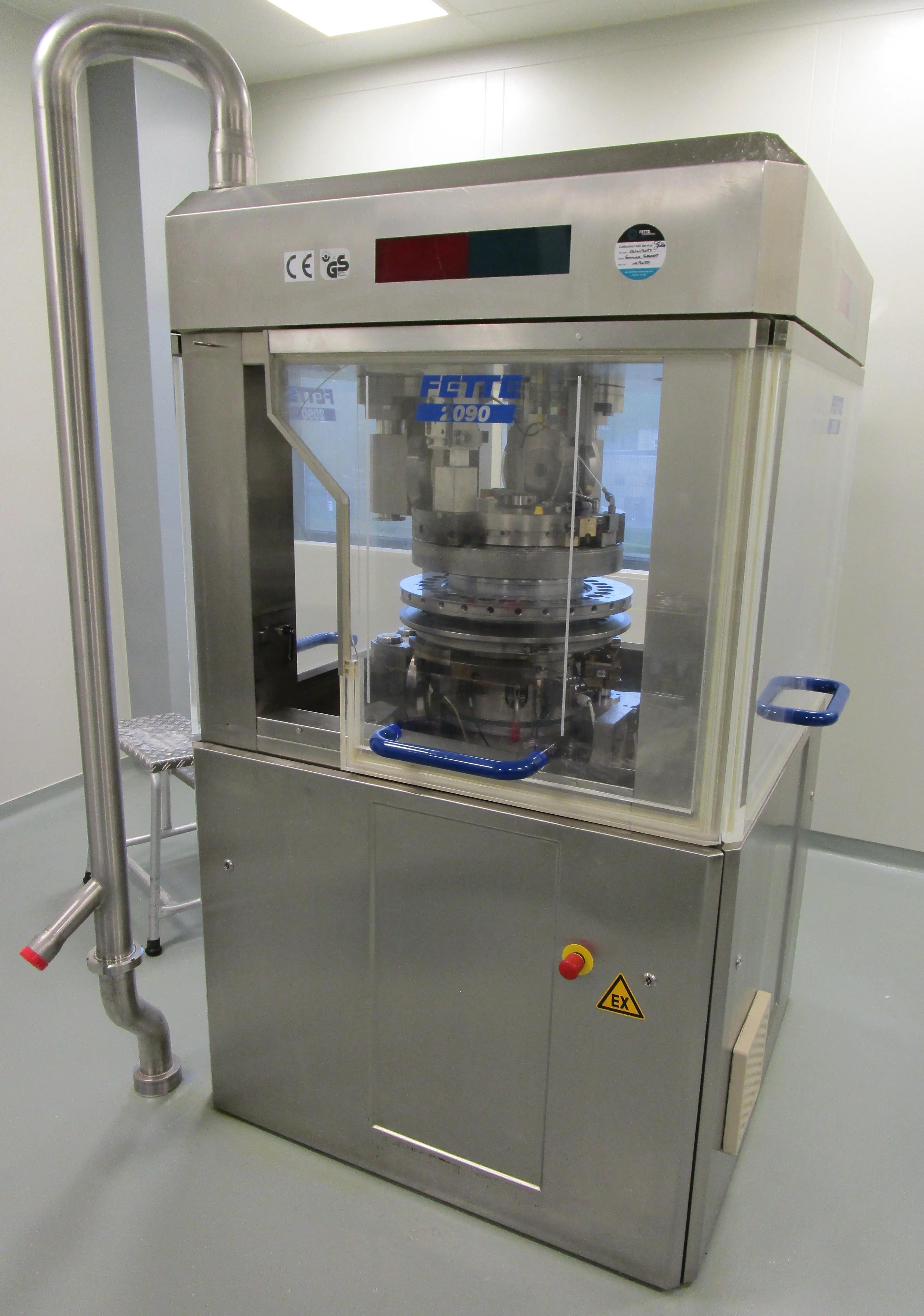

FETTE - Tablet Press - 2090

FETTE TABLET PRESS, MODEL 2090

Year of construction: 2003

High-speed tablet press for the production of tablets up to a maximum of 25 mm Ø. Can process interchangeable tablets and produce capsule-shaped tablets.

MACHINE CHARACTERISTICS

• operating area enclosed within four double-walled Perspex safety guards that allow easy access for cleaning or changing tools
• drive motor and central lubrication system located at the bottom of the machine, and are accessible via large movable panels on all sides
• can be connected to an external dust extraction system via connections located in the upper part of the machine housing
• all operator controls are located on a separate dust-tight console

PRODUCTION CHARACTERISTICS

• Output: 216,600 tablets/hour (with turret installed)
• Tablet diameter: 25.0 mm (max)
• Filling depth: 18.0 mm max (with suitable cam)
• Tablet thickness: 8.5 mm (max)

• Turret diameter: 410 mm
• Rotation speed: 15 - 100 rpm

• Number of stations: 29 (max)
• Compression: 100.0 kN
• Pre-compression: 100.0kN (max)

SIZE

• Dimensions: 1,200 x 1,200 x 2,022 mm
• Weight: 3,500 kg
