SEIDENADER - Inspection Machine - V90-AVSB

or
Call +39 051 4086204

Specifications

ManufacturerSEIDENADER
ModelV90-AVSB
Year2011
ConditionUsed
Serial NumberMLTC-10-25-1561
Stock NumberMLTC-0010-WH

Description

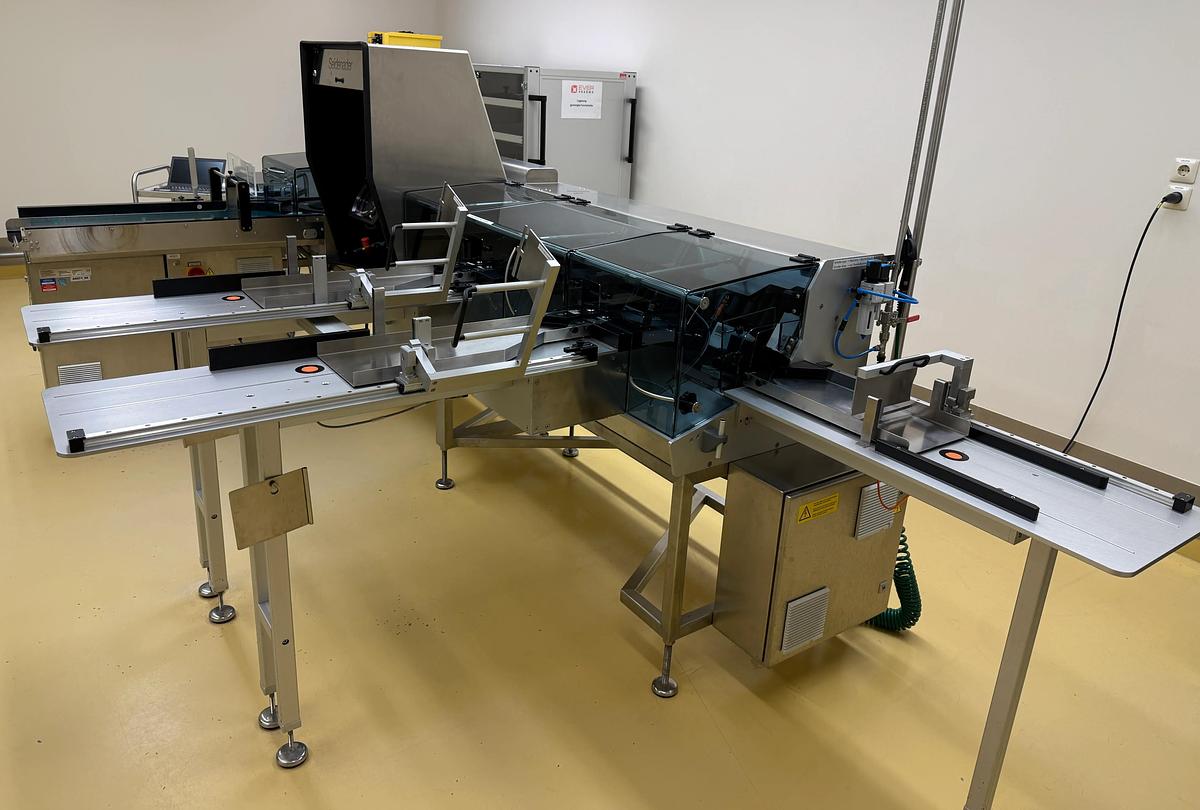

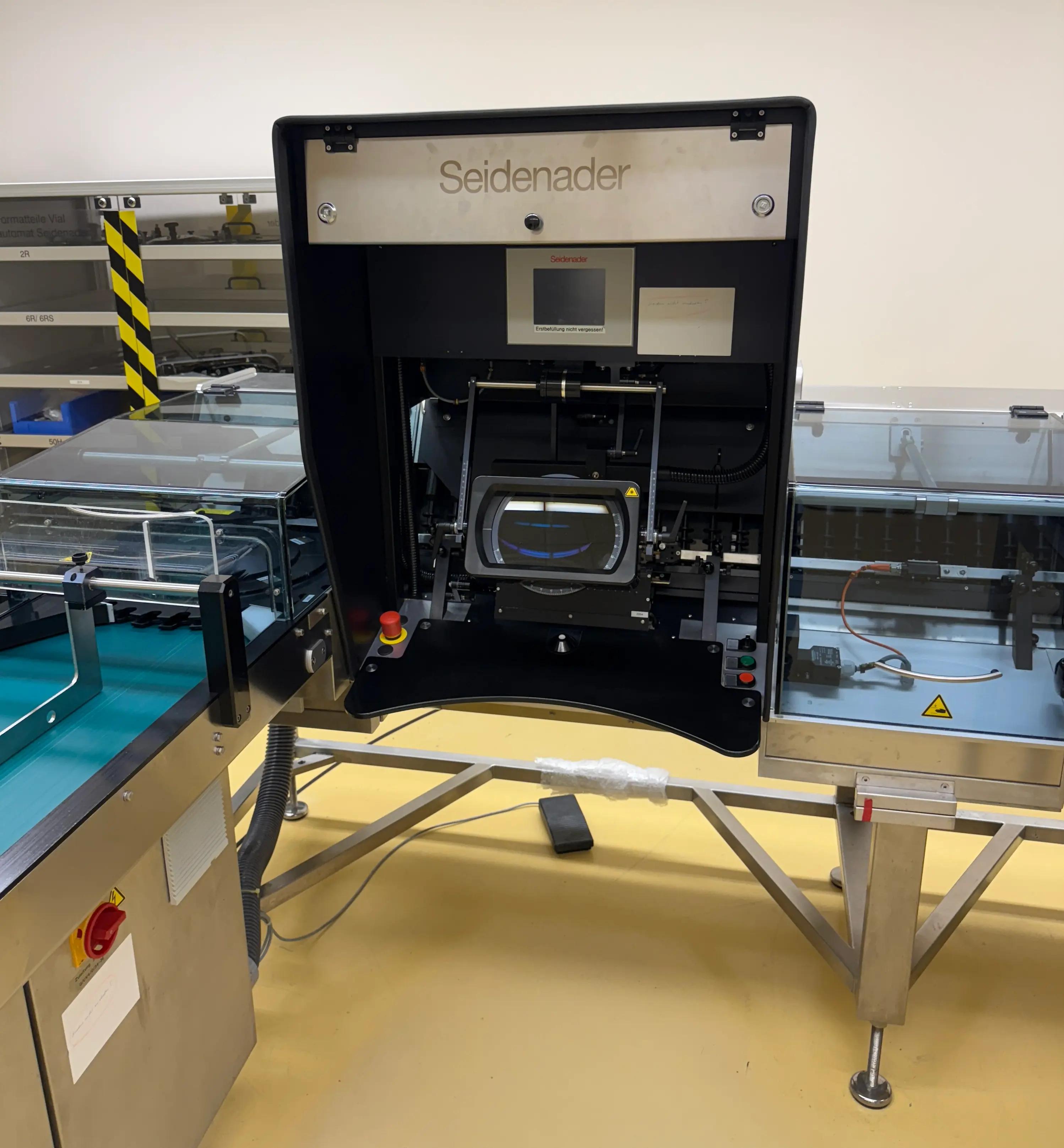

SEIDENADER INSPECTION MACHINE, MODEL V90-AVSB

Year of construction: 2011



Inspection machine for vials and ampoules. The product is fed out of the inspection cabin, brought into upright position and is then transferred into various discharge systems (accumulation tables or trays).



MACHINE CHARACTERISTICS


  • Operators: one
  • Construction: stainless steel

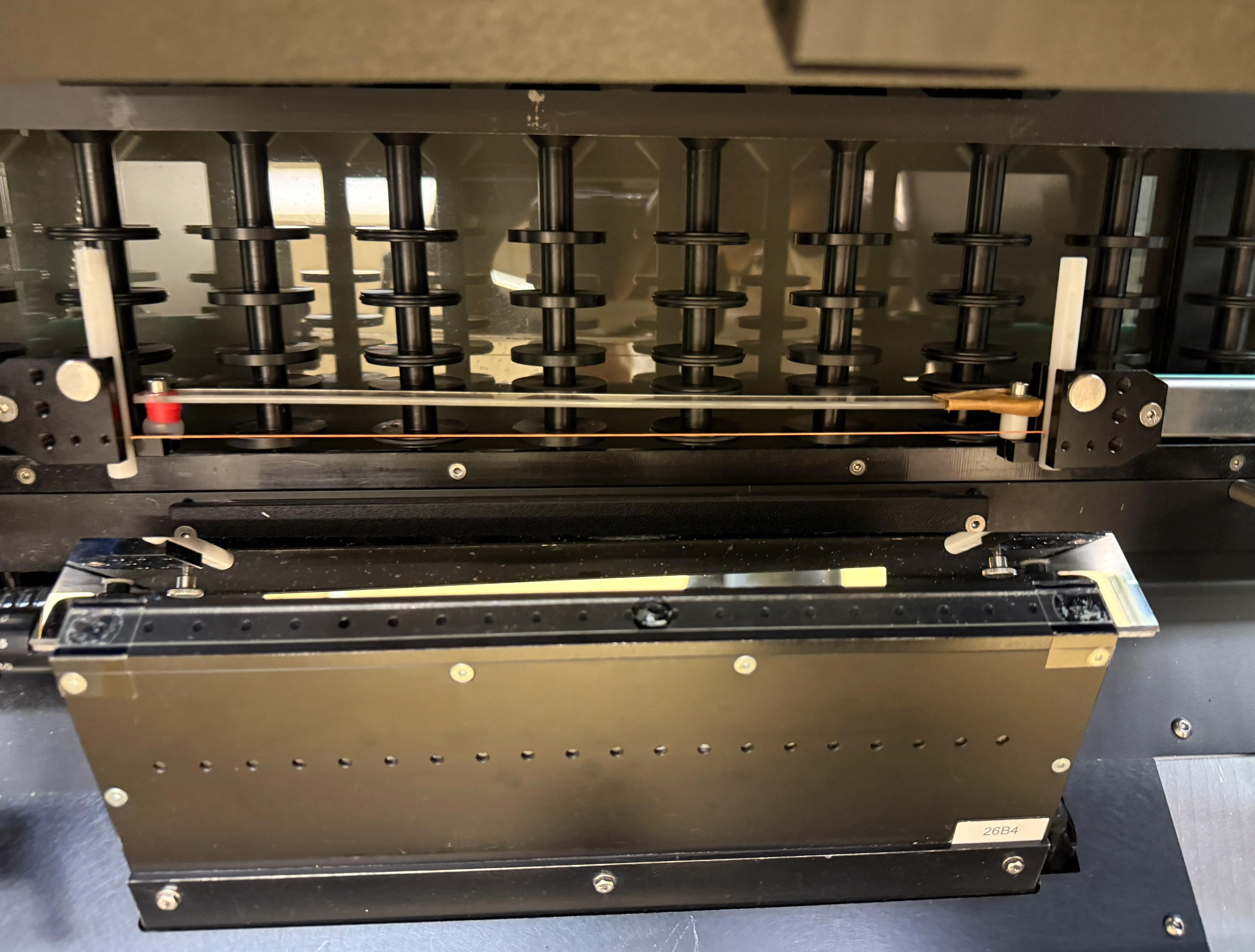

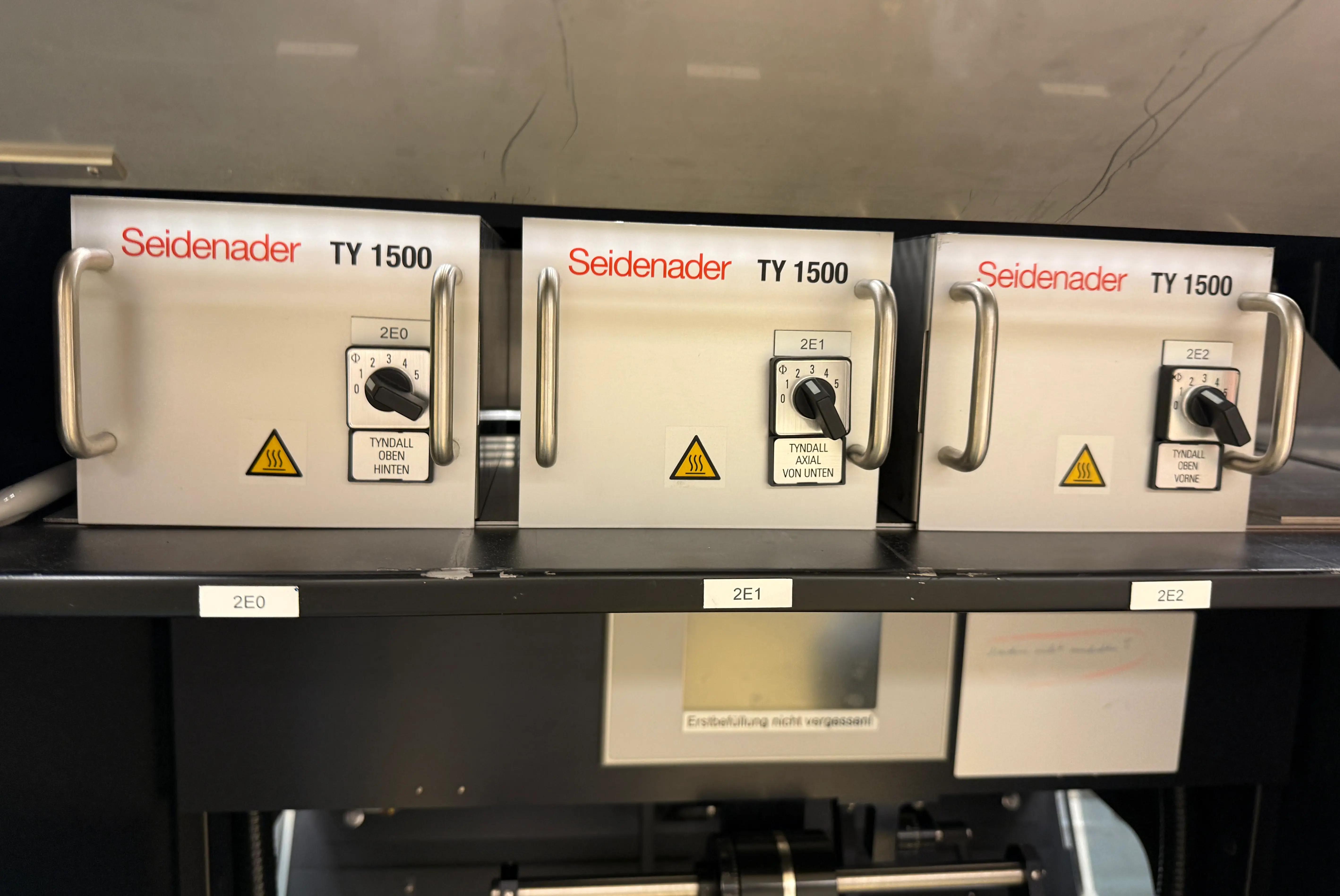

  • Several lighting systems available on option (white light source provides diffused illumination from behind the rollers to allow inspection against both a white background - light source - and a black background - the rollers - or vice versa to meet GMP regulations)



WORKING CHARACTERISTICS


  • Output: max. 150 objects/min/lane
  • Mode of operation: continuous or intermittent (switch)
  • Working height: 900 mm ± 50 mm



ENERGY CONSUMPTION


  • Voltage: 230 V, 0.8-1.4 kW, 50 Hz standard (all desired voltages possible)



SIZE


  • Dimensions: 2300 x 1000 x 1700 mm (ca)
  • Weight: 550 kg net (ca)
