GLATT - Coating Machine - GC SMART 350

GLATT COATING MACHINE, MODEL GC SMART 350

Year of construction: 2019

Never used for production, in operation only for SAT and qualification.

- Non-EX version

- Drum fully perforated with mixing paddles

- Drum useful volume 331 litres, drum diam. 1,450 mm, opening diam. 550 mm

- Batch size: 79-265 kg (filling volume 30-100%, density 0.8 kg/dm3)

- Volume flow 2,000-4,500 m3/h

- Supply air fan max. volume flow 4,500 m3/h, motor power 7.5 kW

- Supply air filter 3 stages M6, F9, H13

- Exhaust air fan max. volumetric flow 4,500 m3/h, motor power 22 kW

- Exhaust air filter H13

- Dehumidification in 2 stages, cooling capacity 75.2 kW, aftercooler 24.3 kW, residual moisture at outlet 2 g/kg

- Humidification: Preheater heating capacity 53 kW

- Main heater: Heating capacity 140 kW, air temperature at outlet +90° C

- 6 spray nozzles with peristaltic pump, spray rate 250-1050 g/min

- Cleaning nozzles: Drum outside 2 x 48 l/min, drum inside 2 x 48 l/min

- Materials: Coater housing, coater drum and parts in contact with product stainless steel AISI 316L/1.4435/1.4404

- Drum drive: Motor power 1.5 kW, speed 1.5-13 rpm

- Antifreeze heater: 68.1 kW

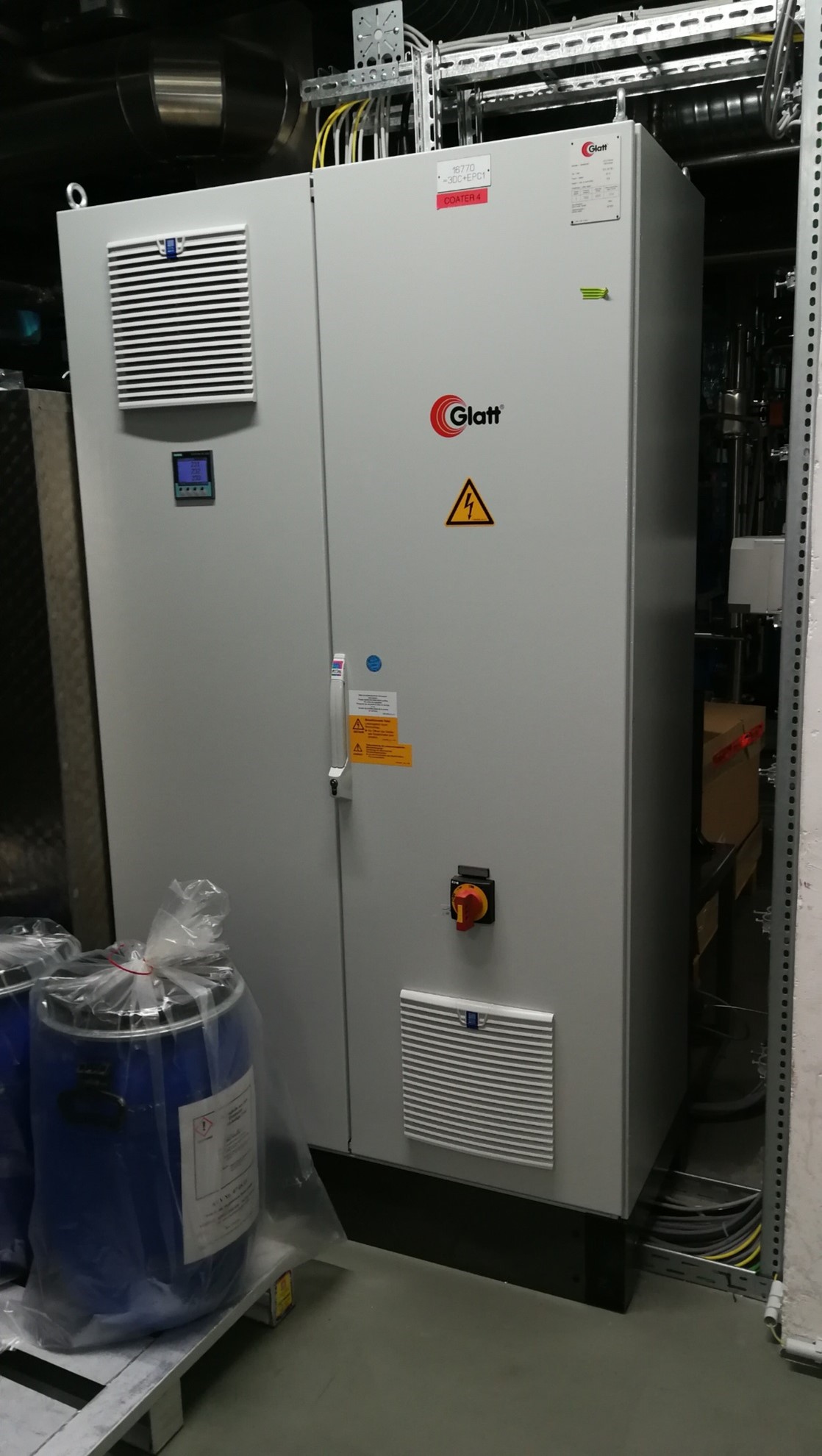

- Control Siemens S7-1500 CPU 1507S

- HMI Visunet GPM Remote Monitor from Pepperl+Fuchs, type 547917

- Control software GlattView Batch; version 5.18

- Operating system Windows 10

- User interface in German/English

- Drive: 400/230/24V/50Hz
