FETTE - Tablet Press - 2090

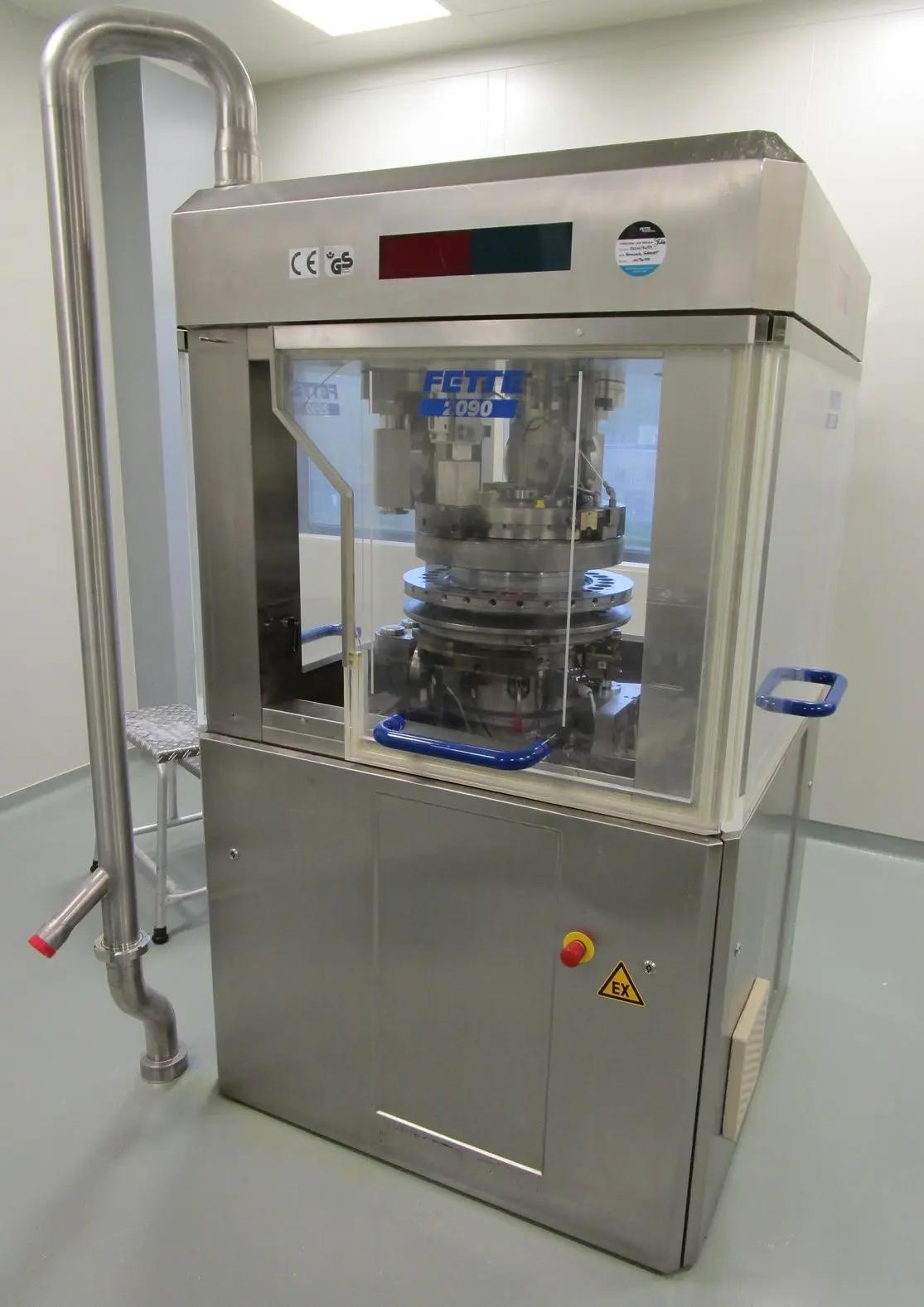

FETTE TABLET PRESS, MODEL 2090

Year of construction: 2003

High speed tablet press for the production of tablets. Operating area enclosed within four double walled Perspex safety guards.

MACHINE CHARACTERISTICS

• double walled Perspex safety guards
• the product to be filled is placed in a stainless steel hopper and guided through a Fill-O-Matic motorised powder feeder into the mould cavities, which can be easily dismantled for cleaning
• can be connected to an external dust extraction system via connection ports in the upper part of the housing

PRODUCTION CHARACTERISTICS

• works with interchangeable moulds
• can produce capsule shaped tablets

• Production: 216,600 tablets/hour (max; with turret installed)
• Tablet dimensions: up to 25 mm Ø (max)
• Tablet thickness: 8.5 mm (max)

• Number of stations: 29
• Compression: 100.0 kN (max)
• Pre-compression: 100.0kN (max)
• Filling depth: 18.0 mm (max; with suitable cam)

• Rotation speed: 15 - 100 rpm
• Turret diameter: 410 mm

SIZE

• Weight: 3,500 Kg
• Footprint: 1,200 x 1,200 x 2,022 mm
