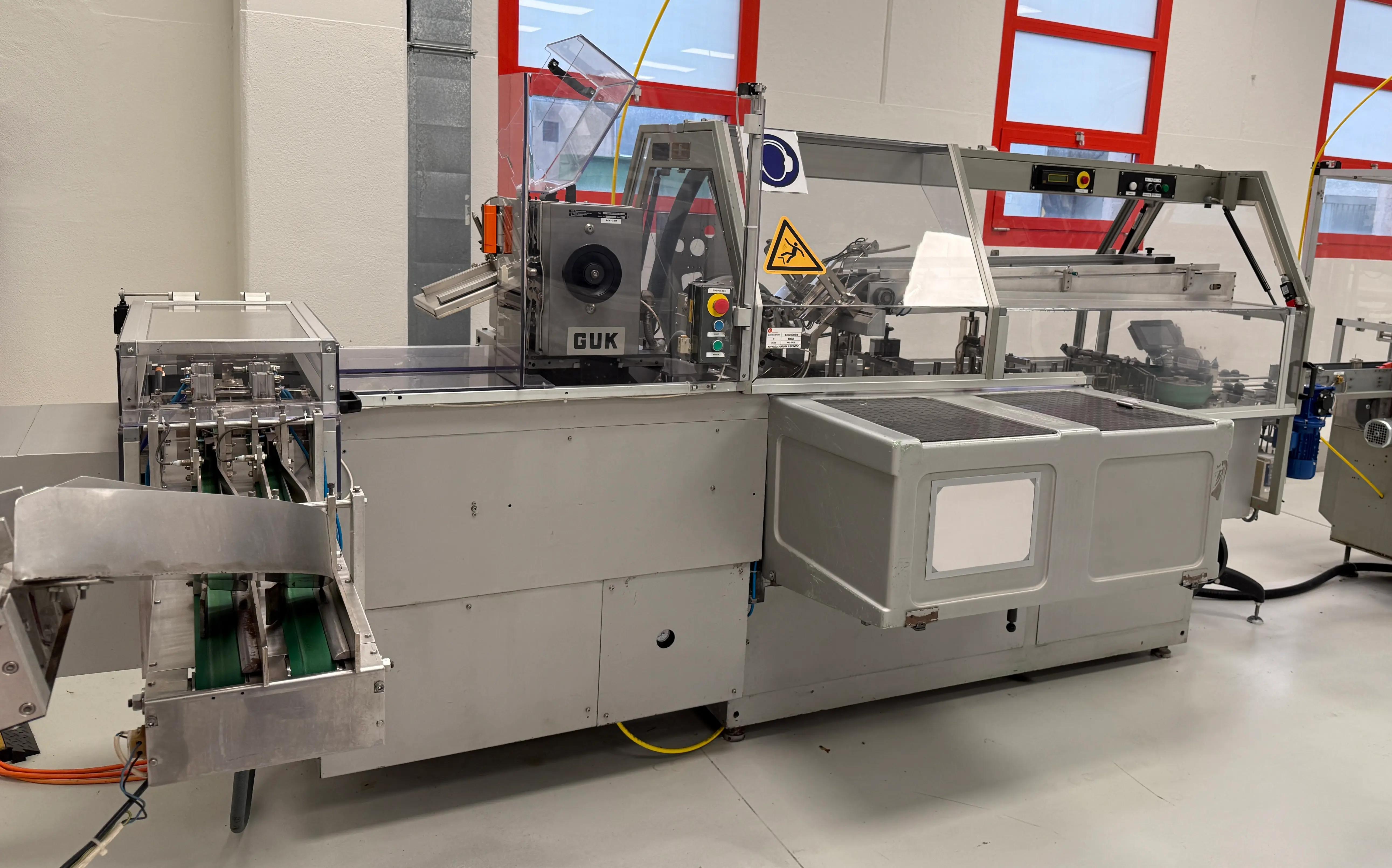

CAM - Cartoning Machine - HF77

CAM CARTONER FOR TUBES, MODEL HF77

High performance cartoner with continuous movement. Simple maintenance, easy to use.

MACHINE CHARACTERISTICS

• fully registrable formats
• channel type cams from a single block
• mechanical shafts installed on ball bearings

PRODUCTION CHARACTERISTICS

• Output: 50 - 250 cases/min

Compatible cases size

• Width: 20 - 70 mm
• Height: 12 - 70 mm
• Length: 55 - 200 mm
• With even or alternate fins

DIMENSIONS

• Size: 3,680 x 1,660 x 1,570 mm
• Weight: 2,200 Kg
