CAM - Cartoning Machine - HF77

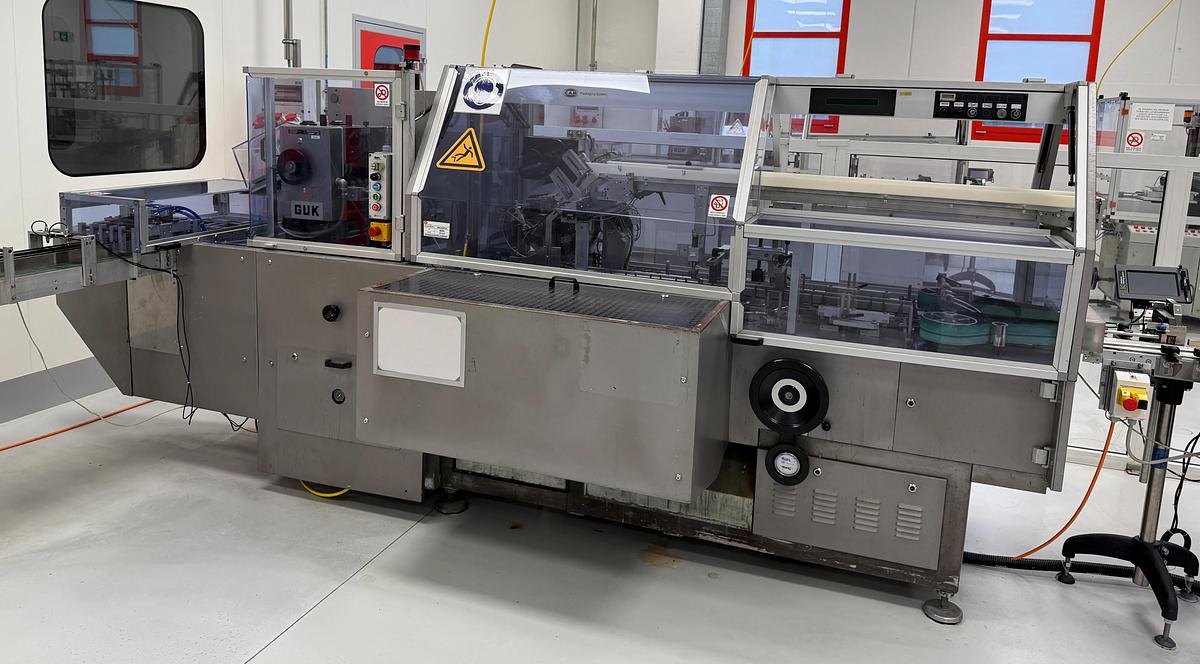

CAM TUBE CARTONER, MODEL HF77

Continuous motion high-performance cartoner, with fully adjustable formats. Parts replacement very simple, through few operations.

MACHINE CHARACTERISTICS

• cams of channel type, machined from a single block
• mechanical shafts installed on ball bearings
• equipped with electrical and mechanical safety devices, which intervene in the event of a malfunction interrupting the regular work cycle
• if an illustrative brochure is required in the case, the sensor that activates the case gripping also sends an impulse to the brochure magazine. The brochure is gripped by suction cups and inserted into a series of belts, and transported to a gripper that is located below the product supply chain

PRODUCTION CHARACTERISTICS

Cases sizes

• Width: 20-70 mm
• Height: 12-70 mm
• Length: 55-200 mm

• Usable cases: with even or alternate fins
• Cartoning speed: from 50 to 250 cartons/minute

SIZE

• Dimensions: 3,680 x 1,660 x 1,570 mm
• Weight: 2,200 kg
