IMA - Tablet Press - SYNTHESIS 500

or
Call +39 051 4086204

Specifications

ManufacturerIMA
ModelSynthesis 500
Year2004
ConditionUsed
Serial NumberMLTC-10-25-1912
Stock NumberMLTC-0010-WH

Description

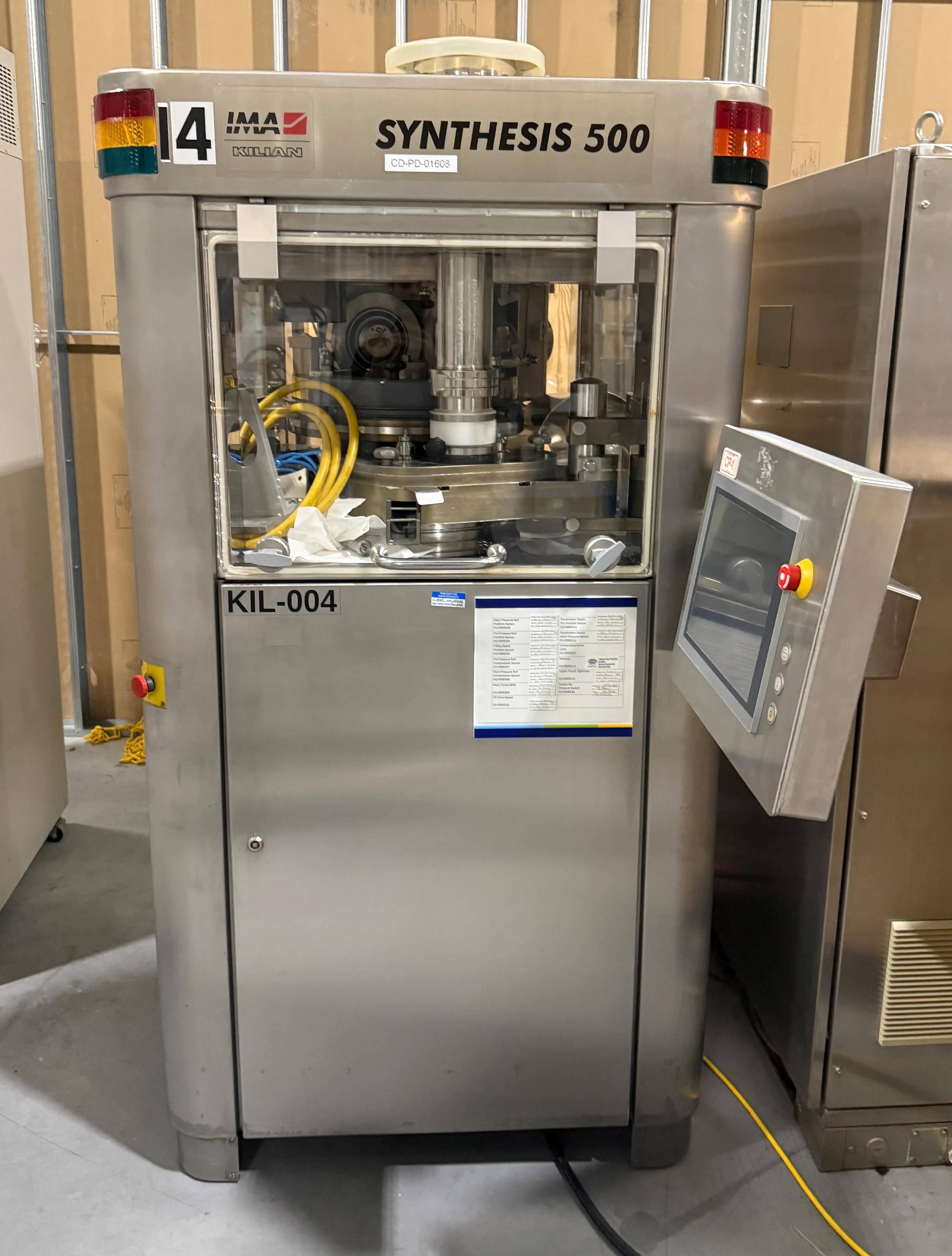

IMA TABLET PRESS, MODEL SYNTHESIS 500

Year of construction: 2004



Fast and accurate rotary tablet press, for tab-in-tab production and dry-coating.



MACHINE CHARACTERISTICS


  • Machine configurations: Mono-layer, Bi-layer, Tab-in-Tab, Bulls-Eye
  • Press stations: 37 B tooled/30 D tooled
  • Tool type (EU and TSM): B; D


  • Max. compression force (first layer): (kN) 10
  • Max. compression force (second layer): (kN) 80 (B)/ 100 (D)



PRODUCTION CHARACTERISTICS


  • Die filling (mm): 18 (B)/ 20 (D) max
  • Tablet diameter (mm): 16 (B)/ 24 (D) max


  • Max. output (Tab-in-Tab TT): 52,500 (B)/ 45,000 (D) (tablets/hour)
  • Max. output (Tab-in-Tab TTH): 98,000 (B)/ 84,000 (D) (tablets/hour)
  • Max. output (Mono-layer): 266,000 (B)/ 198,000 (D) (tablets/hour)
  • Max. output (Bi-layer): 133,000 (B)/ 99,000 (D) (tablets/hour)



ENERGY CONSUMPTION


  • Standard voltage: 400 V
  • Frequency: 50/60 Hz
  • Compressed air: 6 bar



DIMENSIONS


  • Weight: 3,580 kg
